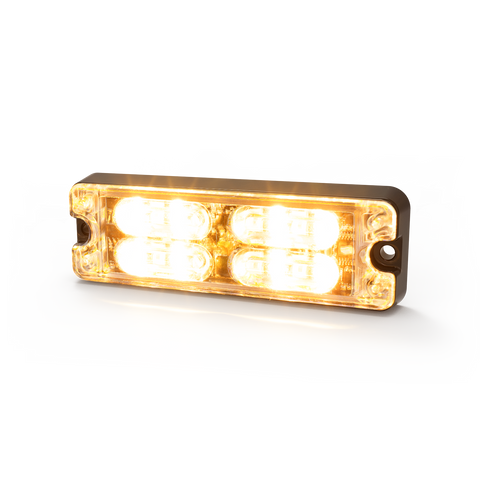

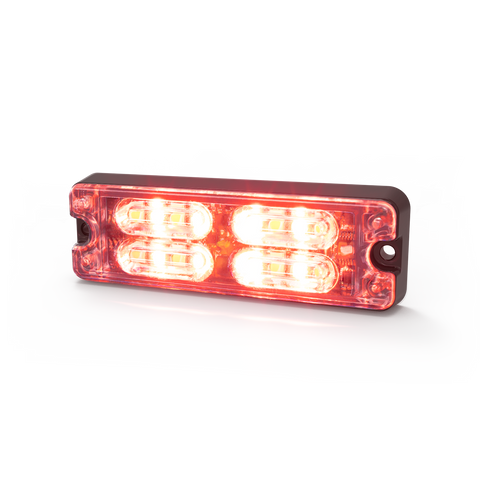

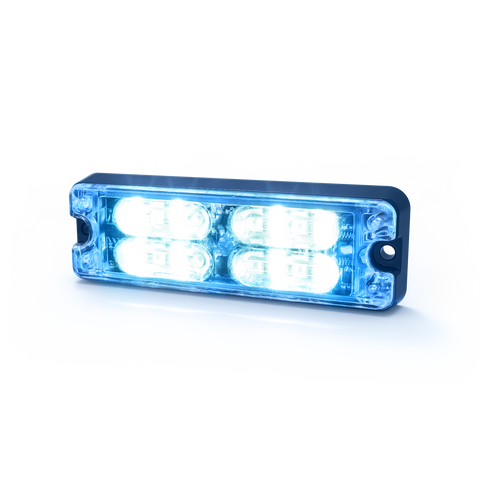

The CD3511 LED warning light is designed to offer maximum performance with a minimal footprint. This surface mount LED measures only 0.5” deep, features 36 flash patterns and is available in amber, blue, white, green and red single- or dual-color options. Its compact form allows for mounting in virtually any location on a vehicle body, while its twelve 1-watt LEDs provide high-intensity utility and warning lighting across use cases. With a low current draw, long maintenance-free service life and a 5-year warranty, the CD3511 Series is a small yet powerful LED for police, fire and EMS vehicles.
Specifications
| Color |
Amber, Blue, Red, White |
| Mount |
Surface |
| Flash Pattern |
29 |
| Approval |
SAE Class I, CA T13, CE, R10, RCM, R65, IP67, RoHS
|
| Height |
1.1 |
| Length / Width |
3.3 |
| Depth |
0.5 |
| Warranty |
5 Year |
| Voltage |
12-24 V |
| Amps |
1.4 |
