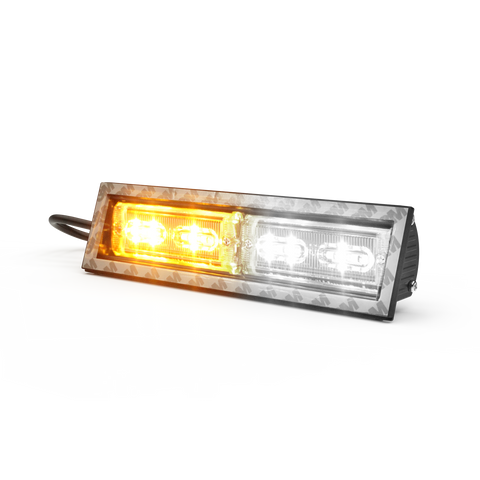

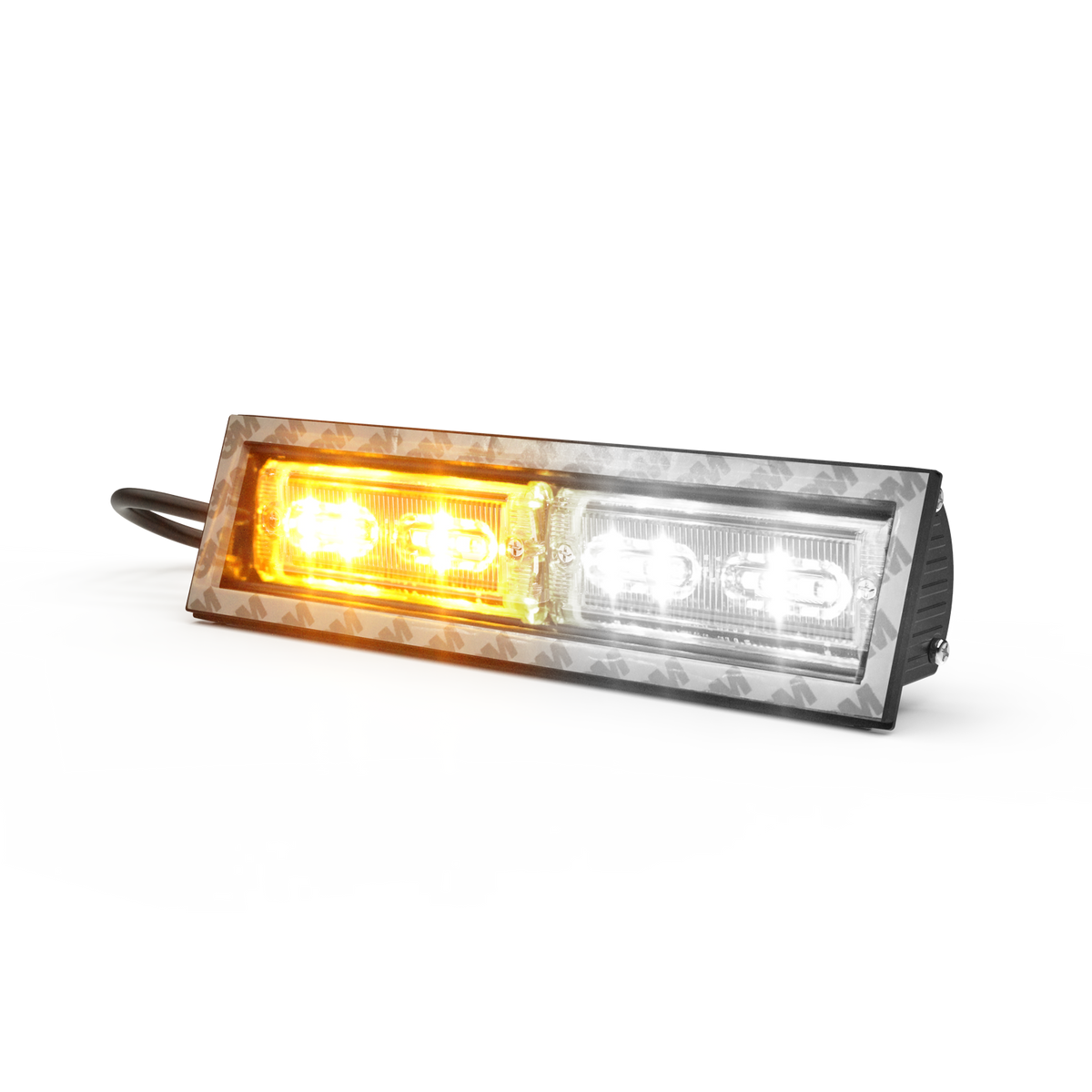

Code 3 CD3974 Series LED Window Shroud Light

The CD3974 is a low-profile, dual-color interior window shroud light. The shroud attaches tightly to the glass with VHB tape to prevent flashback, and the two lightheads tilt to match the window angle.

Features

• Two high-performance dual-color lightheads
• Lightheads adjust 7.5 degrees up or down
• VHB tape holds the shroud to the window and blocks flashback
• Matrix compatible: can be controlled and synchronized through a Code 3 Z3S siren or Switch Node
• Syncs with other Code 3 warning lights in the same sync group when set to matching flash patterns

Specifications

• Voltage: 12-24V
• Current: 0.8A
• Flash patterns: 67

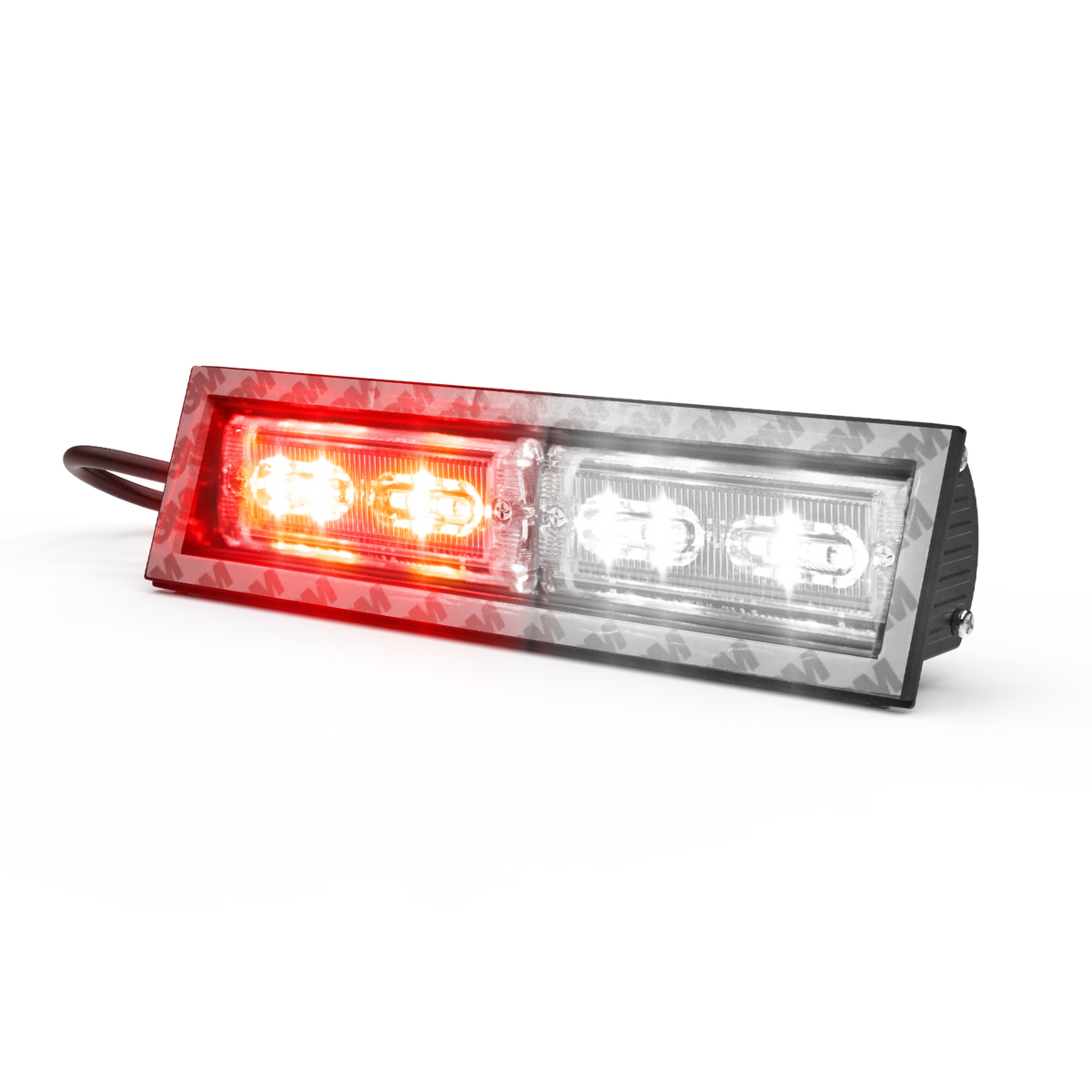

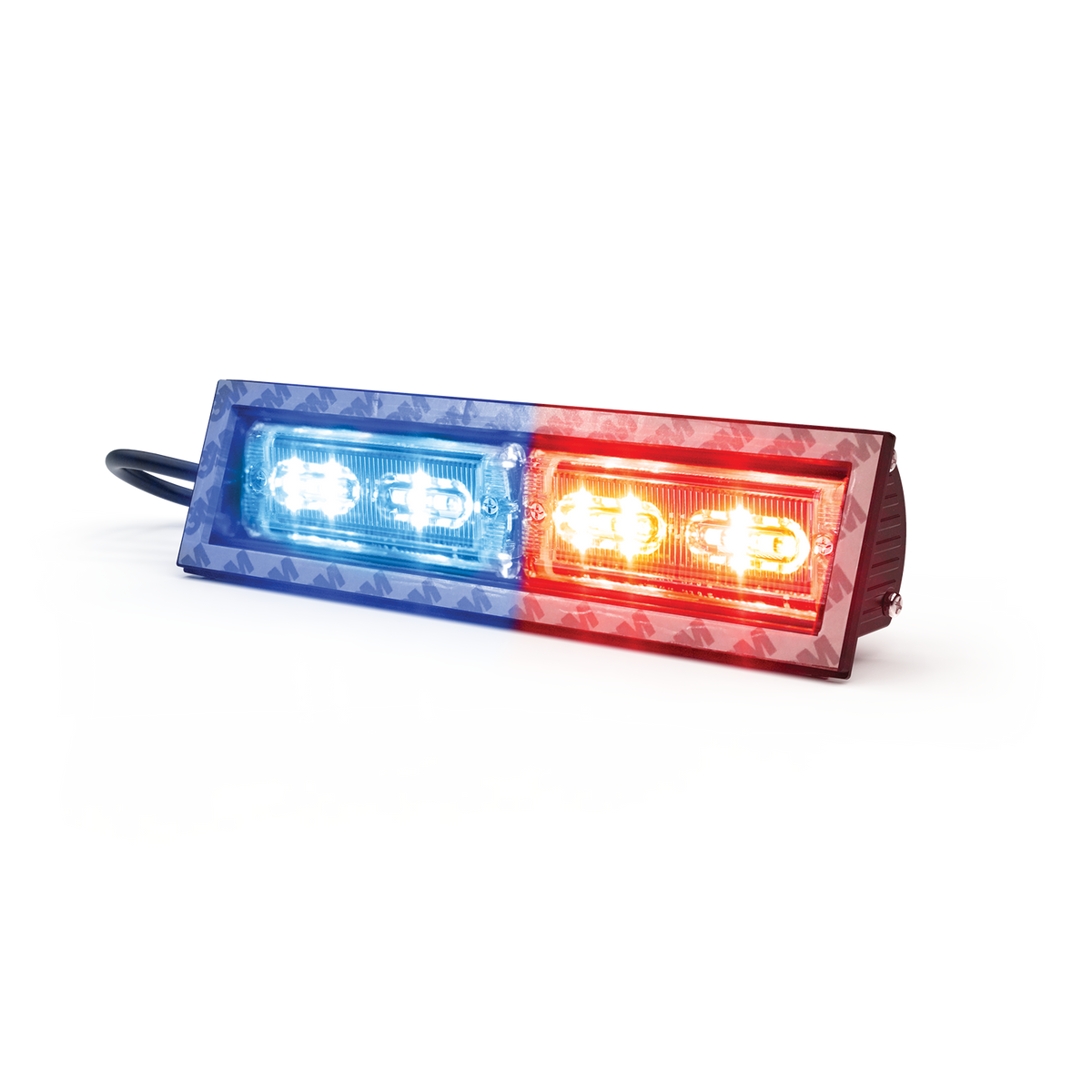

• Colors: Amber/White, Blue/White, Red/White, Red/White + Blue/White
• Dimensions: 2.0" H x 7.8" L x 1.5" D
• Lightheads: 2
• Certifications: SAE J595 Class 1, California Title 13, ECE R10, ECE R65 (not the Red/White + Blue/White model), RCM, RoHS
