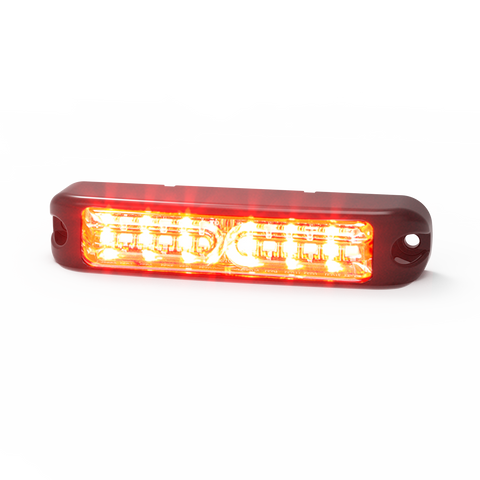

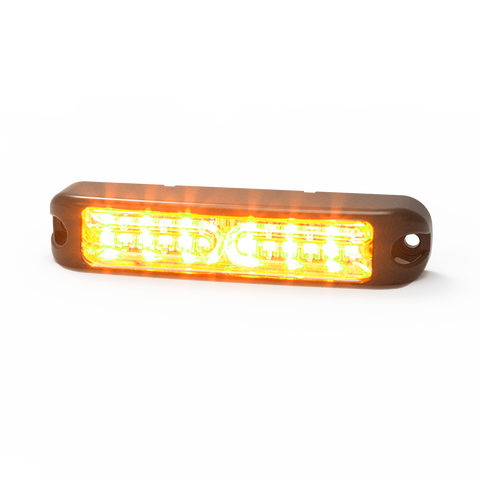

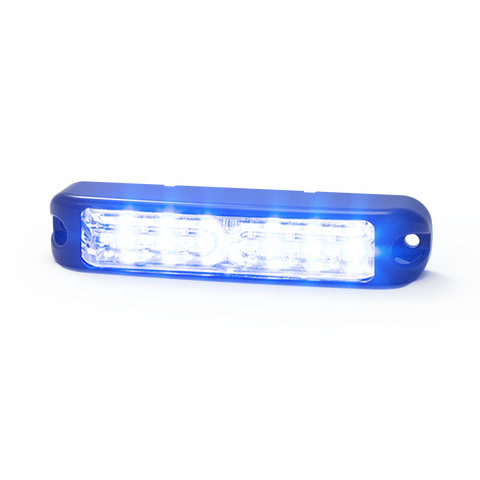

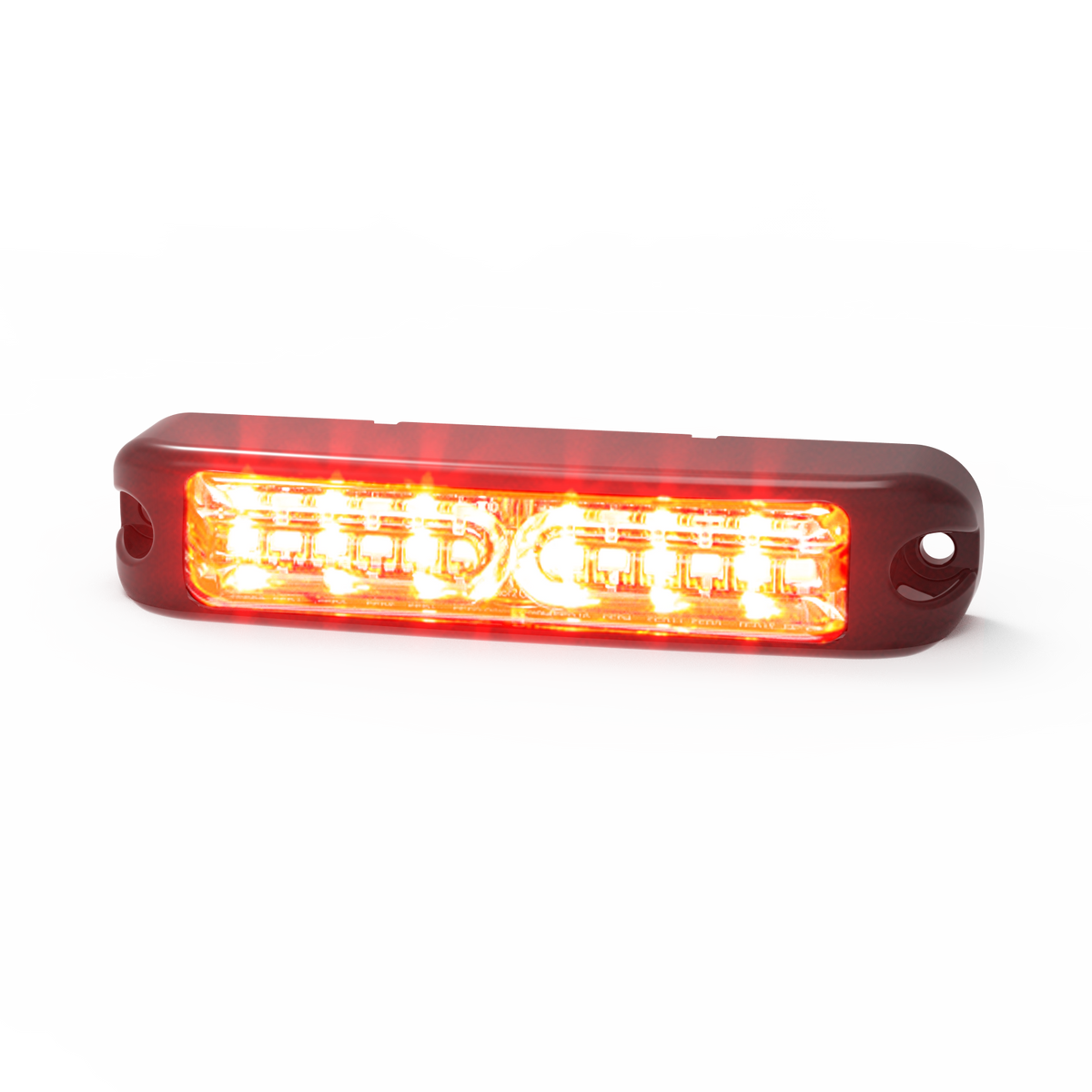

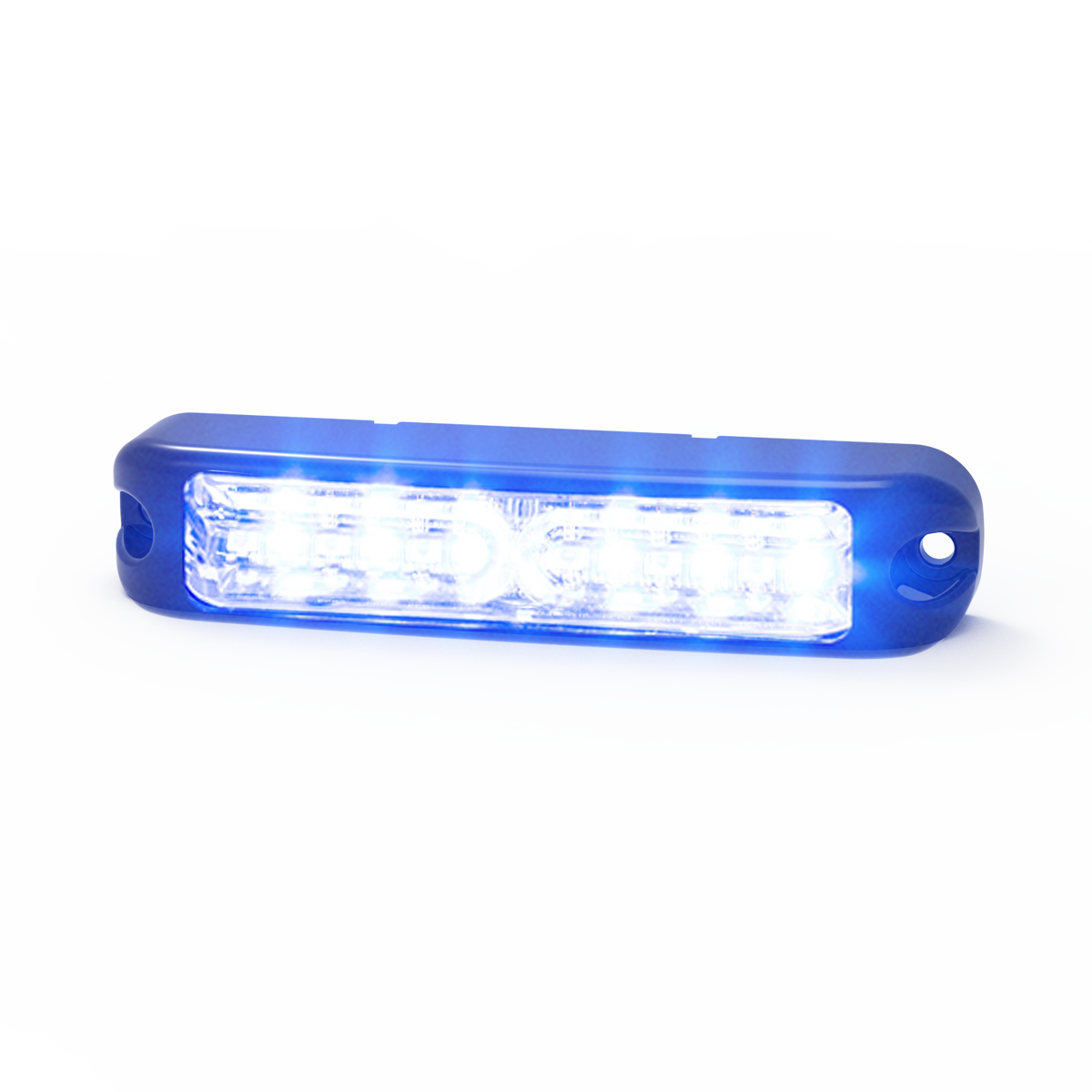

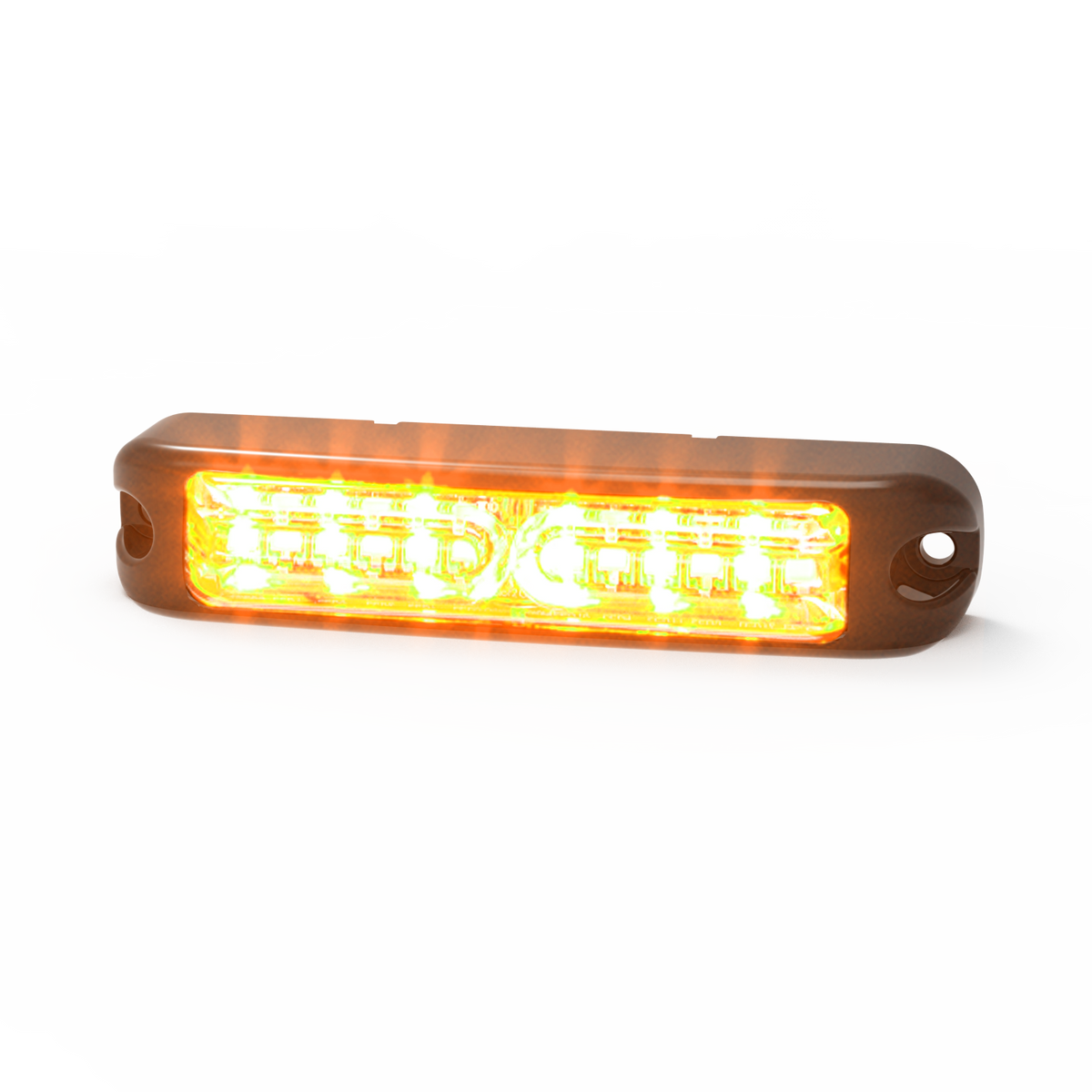

Code 3 CD5031 Series LED Grille Light for Ford PIU

The CD5031 is a dual- or tri-color warning light designed as a grille insert for the Ford Police Interceptor Utility. Choose bezel or stud mounting; each color can be controlled independently.

Features

• Clear lens with 12 dual-color or 18 tri-color LEDs
• Phase 1 and phase 2 sync with multiple flash patterns
• Aluminum housing and polycarbonate lens
• 2-bolt mount with included bezel, or stud mount
• Operating range -40 to 149 degrees F
• Steady-burn (-SB) models
• Matrix compatible: can be controlled and synchronized through a Code 3 Z3S siren or Switch Node

Specifications

• Voltage: 12-24V
• Current: 0.8A (dual-color), 0.6A (tri-color)
• Flash patterns: 69
• Colors: dual-color Amber/White, Blue/White, Red/Blue, Red/White; tri-color Blue/Amber/White, Red/Amber/White, Red/Blue/Amber, Red/Blue/White
• Dimensions: 0.6" H x 3.2" L x 0.9" D (no bezel); 0.9" H x 4.0" L x 0.9" D (with bezel)
• Certifications: SAE J595 Class 1, California Title 13, IP67, IP69K, RoHS
