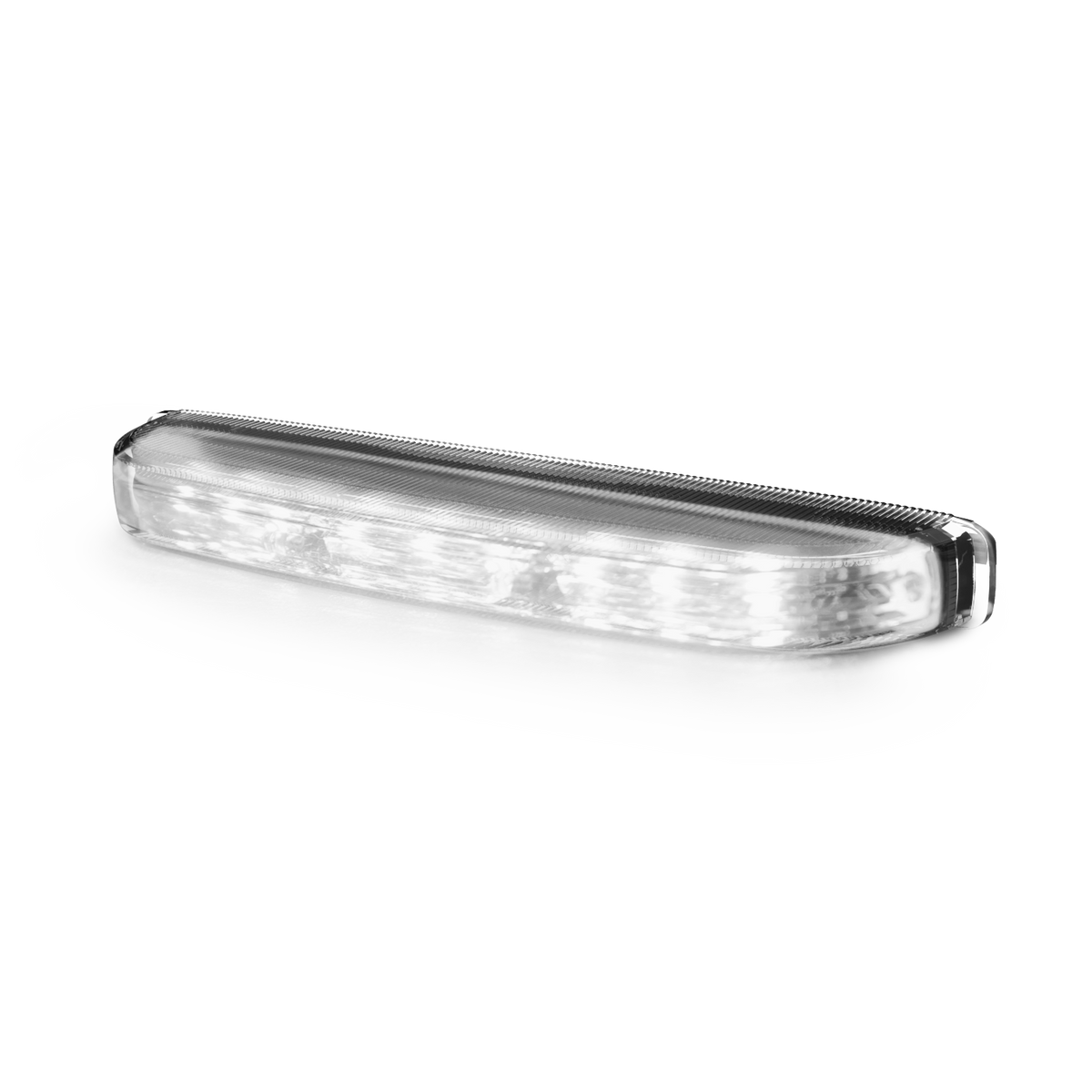

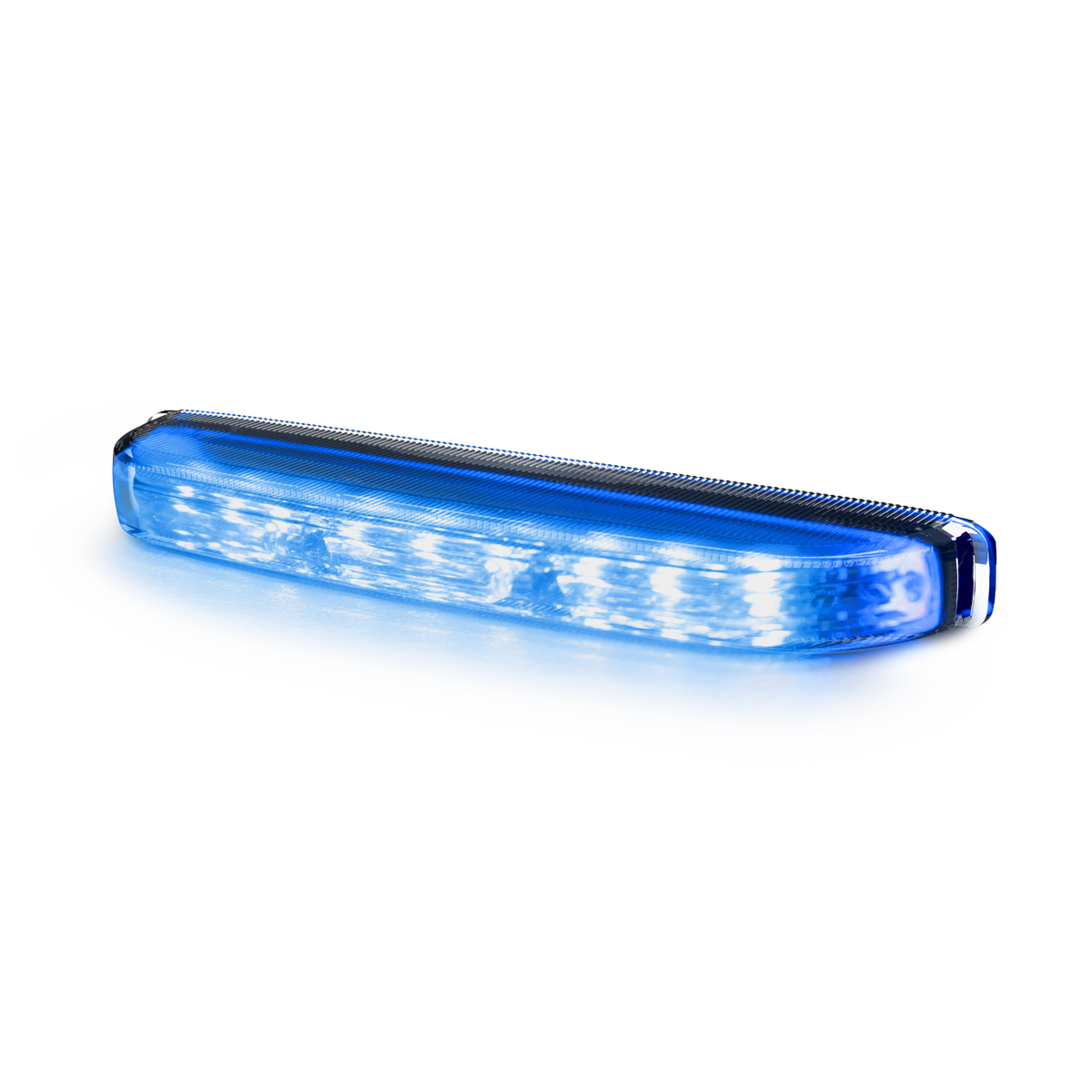

Code 3 CD5051 Series LED Multi-Mount Warning Light

The CD5051 is a slim multi-mount warning light for hard-to-fit areas such as grilles and rear hatches. Single- and dual-color versions spread light across a 180-degree field and can be synchronized with other Code 3 lights. A surface-mount bracket is included.

Features

• 35% slimmer than traditional models
• 180-degree light output
• Polycarbonate housing and lens
• Surface-mount bracket included
• Matrix compatible: can be controlled and synchronized through a Code 3 Z3S siren or Switch Node
• Syncs with other Code 3 warning lights in the same sync group when set to matching flash patterns

Specifications

• Voltage: 12-24V
• Current: 0.7A (single-color), 0.6A (dual-color)
• Flash patterns: 18 or 36; unlimited when run through Matrix
• Colors: Amber, Blue, Red, White; dual-color Amber/White, Blue/White, Red/Amber, Red/Blue, Red/White
• Dimensions: 0.6" H x 5.4" L x 1.0" D
• Mounting hole spacing: 3.54"
• Certifications: SAE J595 Class 1, California Title 13, NFPA, ECE R10, IP67, RoHS
