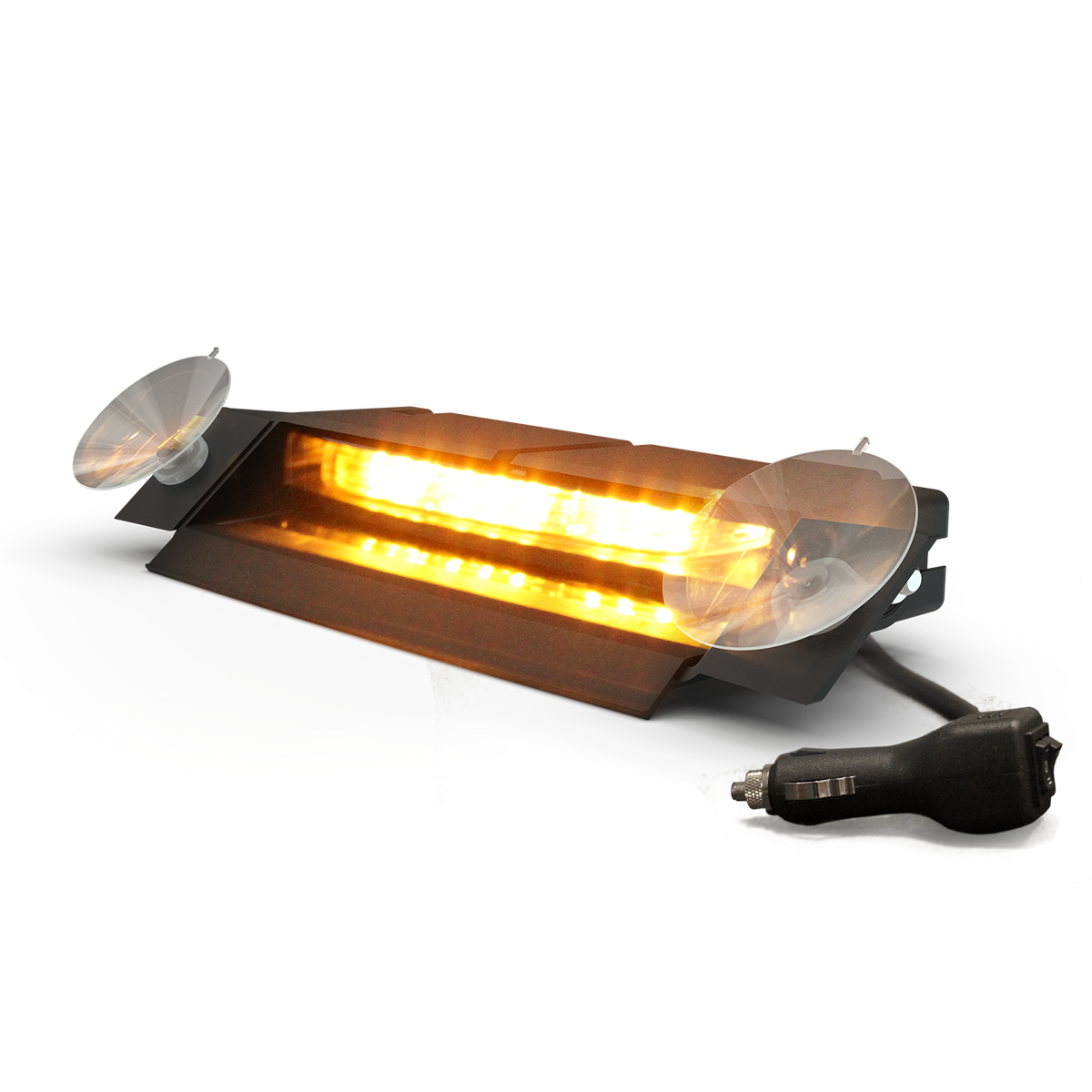

Code 3 CD5051VDL1 Series Dash, Deck and Visor Light

The low-profile, Matrix-compatible CD5051VDL1 puts one dual-color lighthead in a sleek interior unit for patrol, unmarked or fleet vehicles. A removable visor hood lets it work on the deck, dash or windows, and several mounting options are included.

Features

• Single CD5051 dual-color lighthead in a small housing
• Sleek design for low-profile installs
• Removable visor hood for deck, dash or window use
• Multiple mounting options included
• Cigarette plug adapter with flash pattern selector
• Matrix compatible: can be controlled and synchronized through a Code 3 Z3S siren or Switch Node
• Syncs with other Code 3 warning lights in the same sync group when set to matching flash patterns

Specifications

• Voltage: 12-24V
• Current: 1.7A
• Flash patterns: 36
• Colors: Amber/Blue, Amber/White, Blue/White, Red/Blue, Red/White
• Dimensions: 0.8" H x 5.9" W x 1.6" D (no shroud); 1.3" H x 8.6" W x 3.3" D (with shroud)
• Lightheads: 1
• Certifications: SAE J595 Class 1, California Title 13, ECE R65, ECE R10, RCM, RoHS
