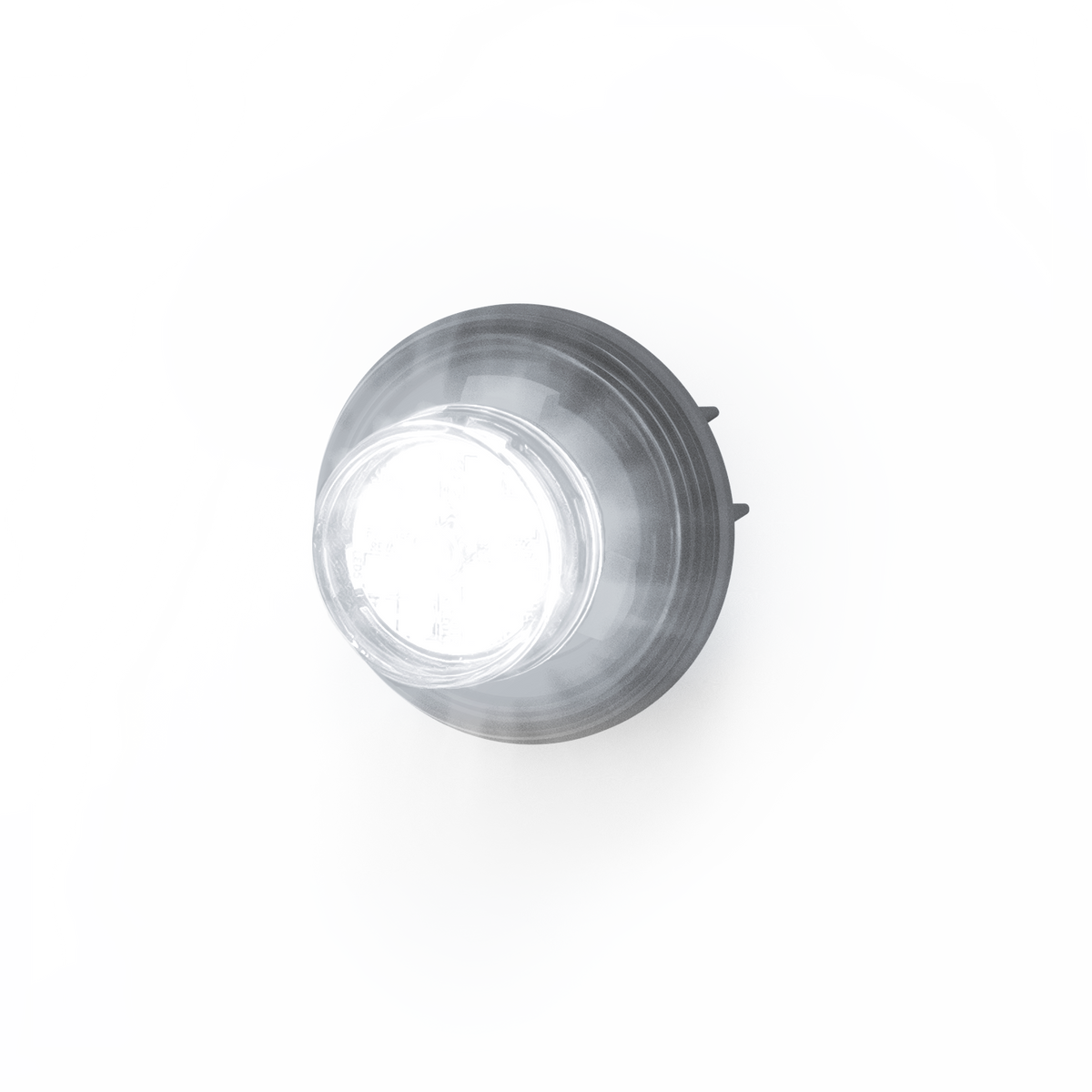

Code 3 CD9012 Series 12-LED Hide-A-Blast Warning Light

The Code 3 CD9012 Series is a 12-LED Hide-A-Blast warning light for standard or concealed mounting. It installs in a 1-inch hole, on a surface with the included 2-bolt bezel, or, in the PI version, twist-locks into the 2020 Ford PIU headlight. An in-line flasher provides steady burn and dimming.

Features

• 12 LEDs in single- or dual-color versions
• In-line flasher with steady burn and dim capability
• 12.5' cable included
• CD9012: surface mount with 2-bolt bezel or insert into a headlight
• CD9012-PI: twist-lock version for the 2020 Ford PIU headlight
• Matrix compatible: can be controlled and synchronized through a Code 3 Z3S siren or Switch Node
• Syncs with other Code 3 warning lights in the same sync group when set to matching flash patterns

Specifications

• Voltage: 12-24V
• Current: 1.3A (single-color), 0.8A (dual-color)
• Flash patterns: 29 (single-color), 69 (dual-color)
• Colors: White; dual-color Amber/White, Blue/White, Red/Blue, Red/White
• Dimensions: CD9012 1.2" H x 1.0" lens / 1.4" base diameter; CD9012-PI 1.4" H x 1.0" lens / 1.7" base diameter
• Certifications: SAE J595 Class 3, ECE R10, IP66
