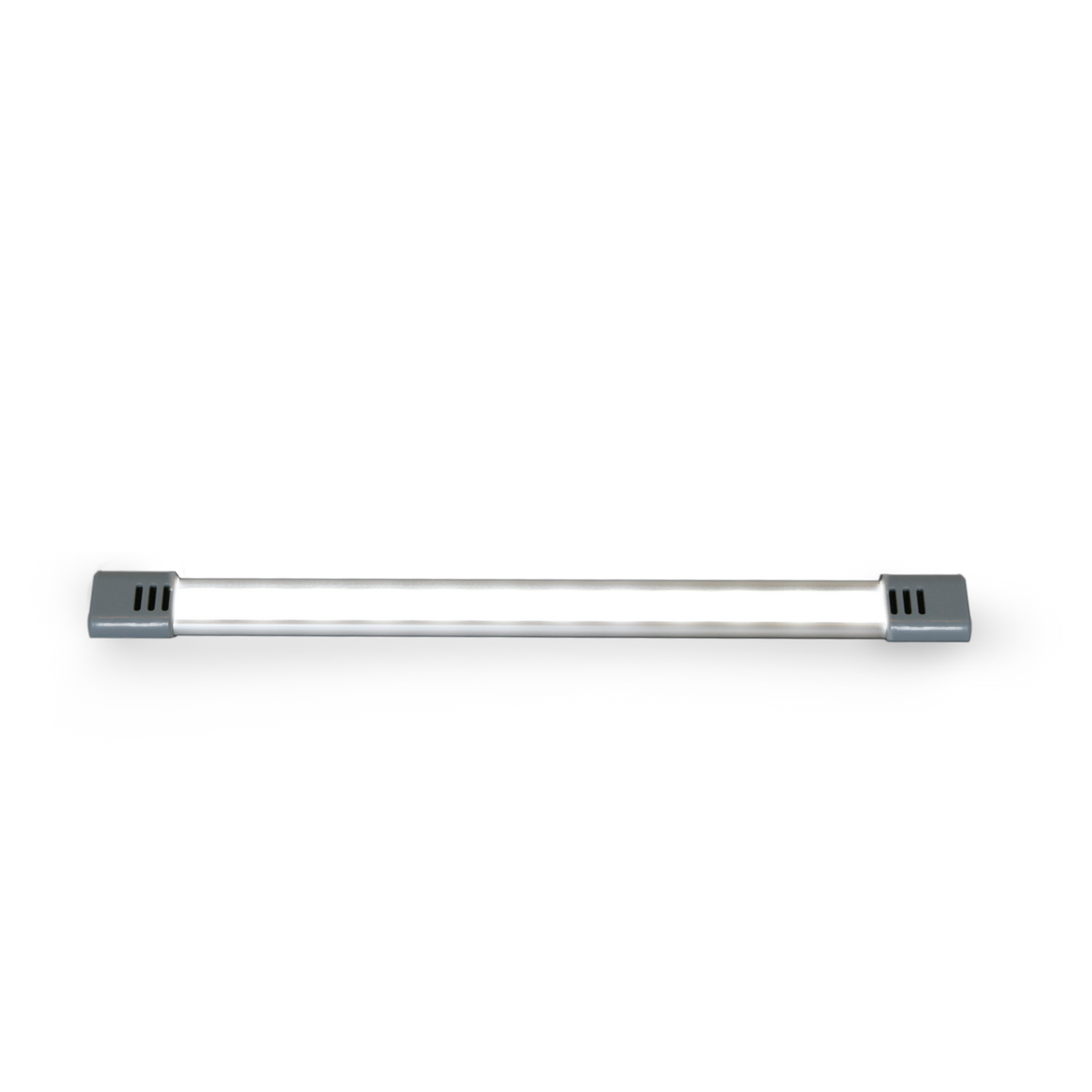

Code 3 CW0800 Series LED Corner Compartment Light

The Code 3 CW0800 Series mounts in the 90-degree corner of a compartment and floods light onto shelves and equipment. Six lengths from 11.6 to 61.2 inches let you match the compartment height.

Features

• 90-degree corner mount with flood beam
• Extruded aluminum frame for harsh environments
• Gray end caps (included) protect the mounting hardware
• Waterproof for interior or exterior use
• Low profile and vibration resistant

Specifications

• Voltage: 12-24V
• Color: White
• Lengths: 11.6", 21.5", 31.5", 41.4", 51.3", 61.2" (12 to 72 LEDs)
• Output: 200 to 1,200 lumens (raw) depending on length
• Current: 0.2A to 1.1A depending on length
• Profile: 0.7" H x 0.7" D
• Certifications: ECE R10, IP67, RoHS
