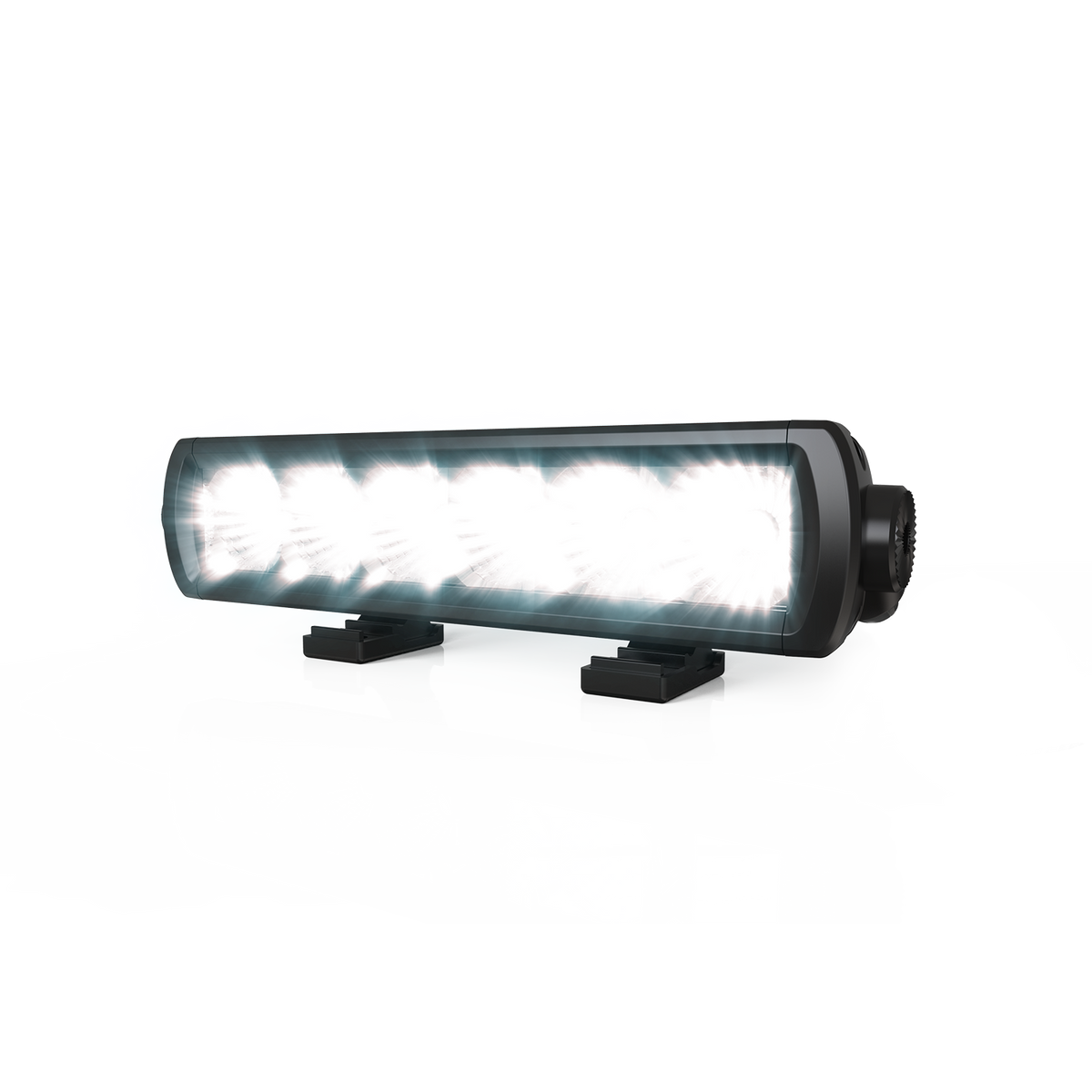

Code 3 CW3100 Series Single-Row LED Utility Light Bar

The Code 3 CW3100 Series is a single-row LED utility bar for forward, rear and scene lighting on work trucks and equipment. The CW3109 has a flood beam, while the CW3120 and CW3132 use a flood/spot combination beam.

Features

• High-intensity beam
• Built-in vent to prevent fogging
• Aluminum heatsink housing and polycarbonate lens
• Adjustable end or extrusion mount
• Deutsch connector

Specifications

• Voltage: 12-24V
• CW3109: flood, 875 lumens (raw), 0.8A, 9.3" long
• CW3120: flood/spot combo, 2,175 lumens (raw), 1.8A
• CW3132: flood/spot combo, 3,475 lumens (raw), 3.0A
• Profile: 2.0" H x 2.0" D
• Connector: DT04-2P (mates with DT06-2S)
• Certifications: CE, IP67, IP69K, RoHS
