Code 3 4x6 LED Triple and Quad Stack Perimeter Package

These coordinated packages combine stop/tail, turn, reverse and warning lights in a single chrome-bezel assembly sized to industry standards. They surface mount without cutting large holes in the vehicle, and the bezel helps keep water out.

Features

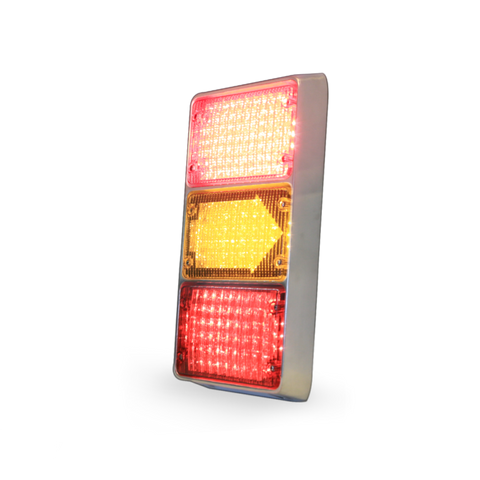

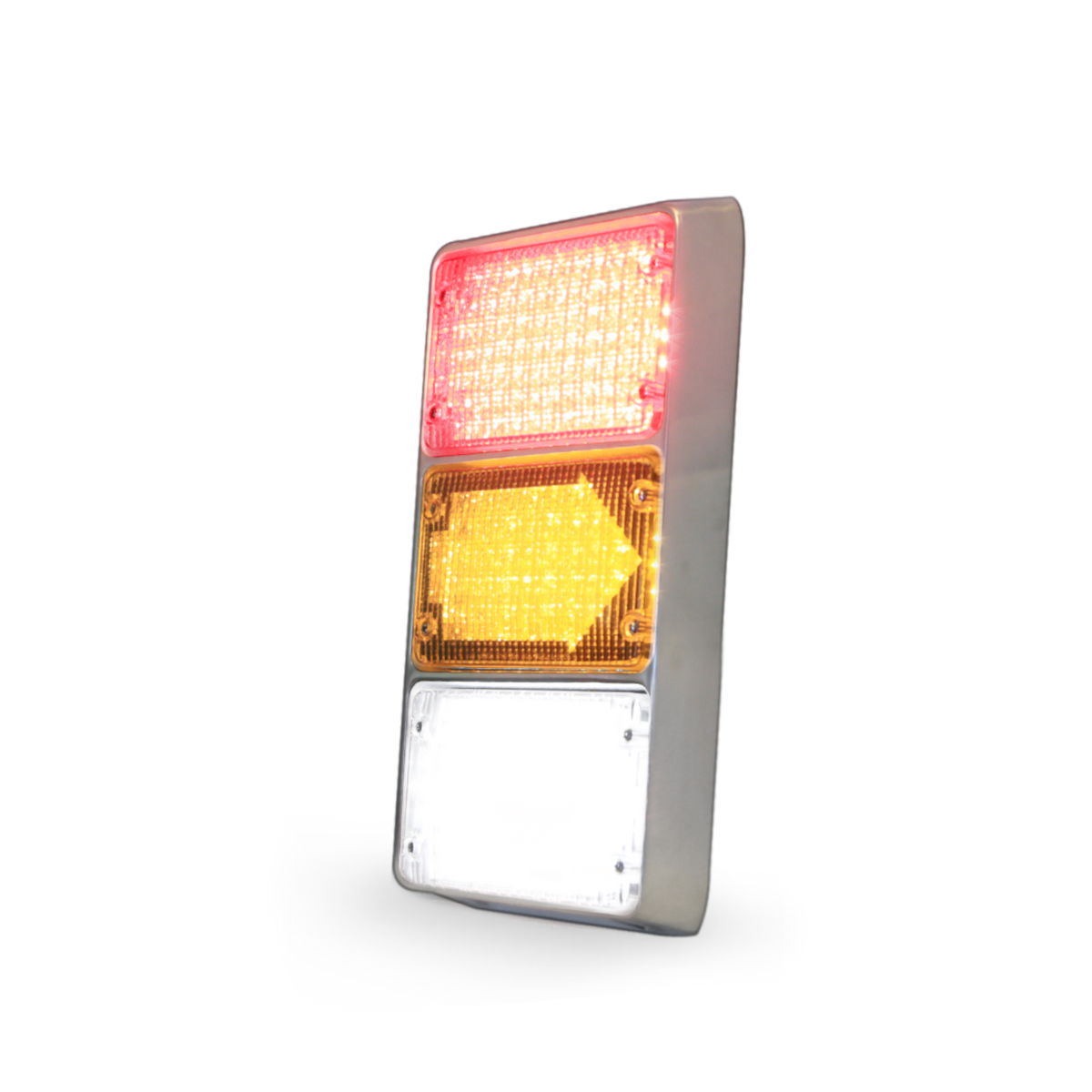

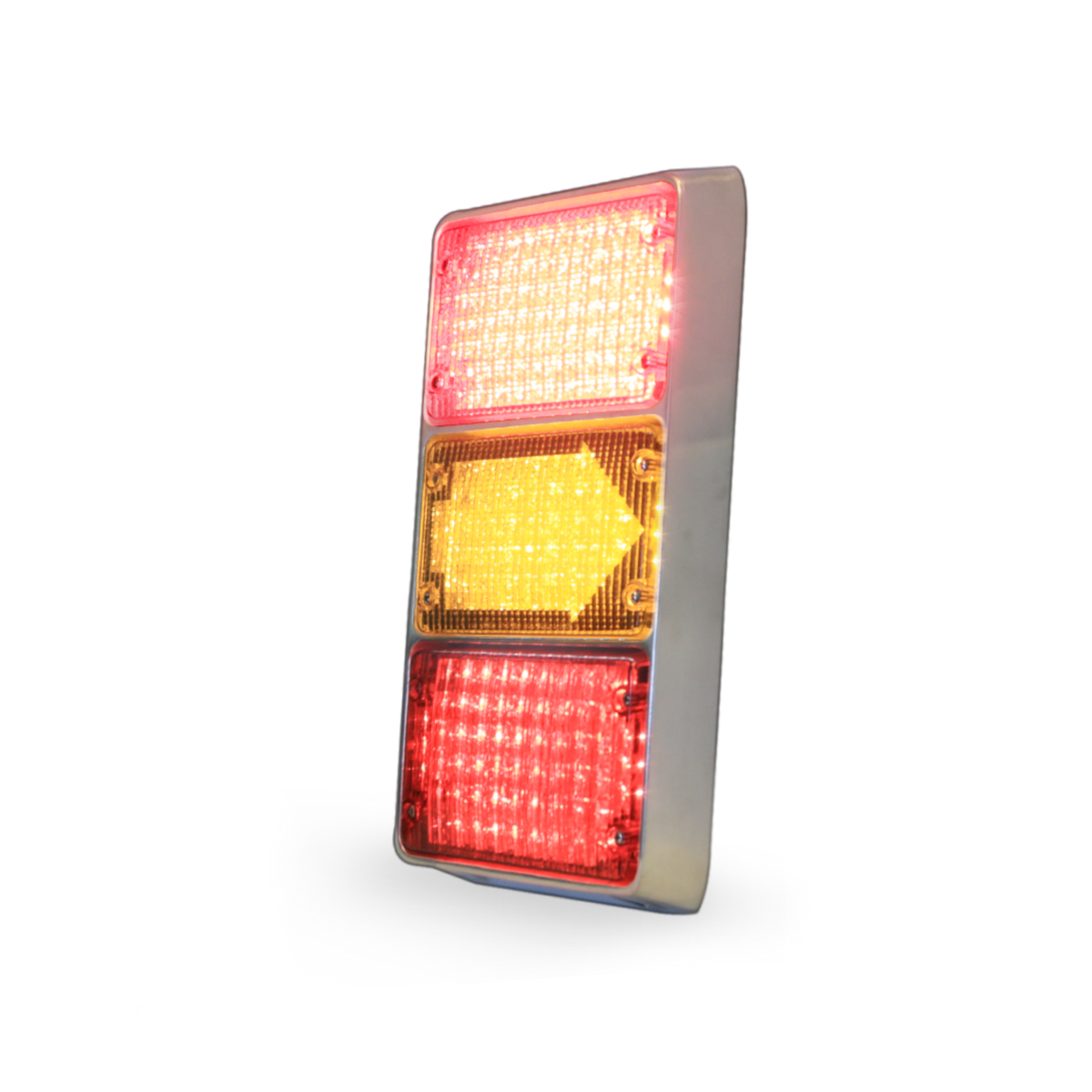

• 65PKG triple stack: 65STR stop/tail, 65TA turn and 65W modules

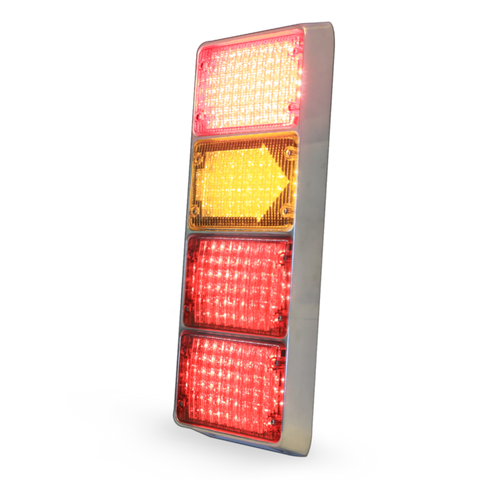

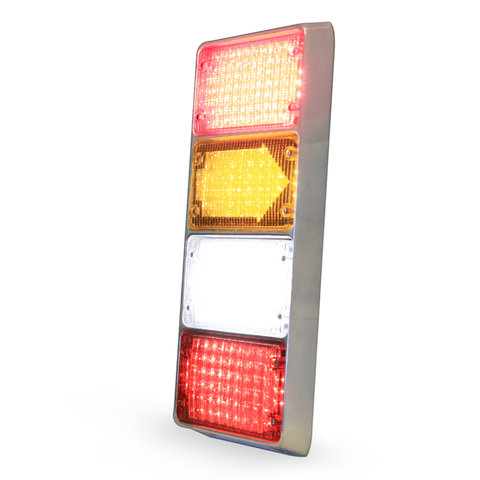

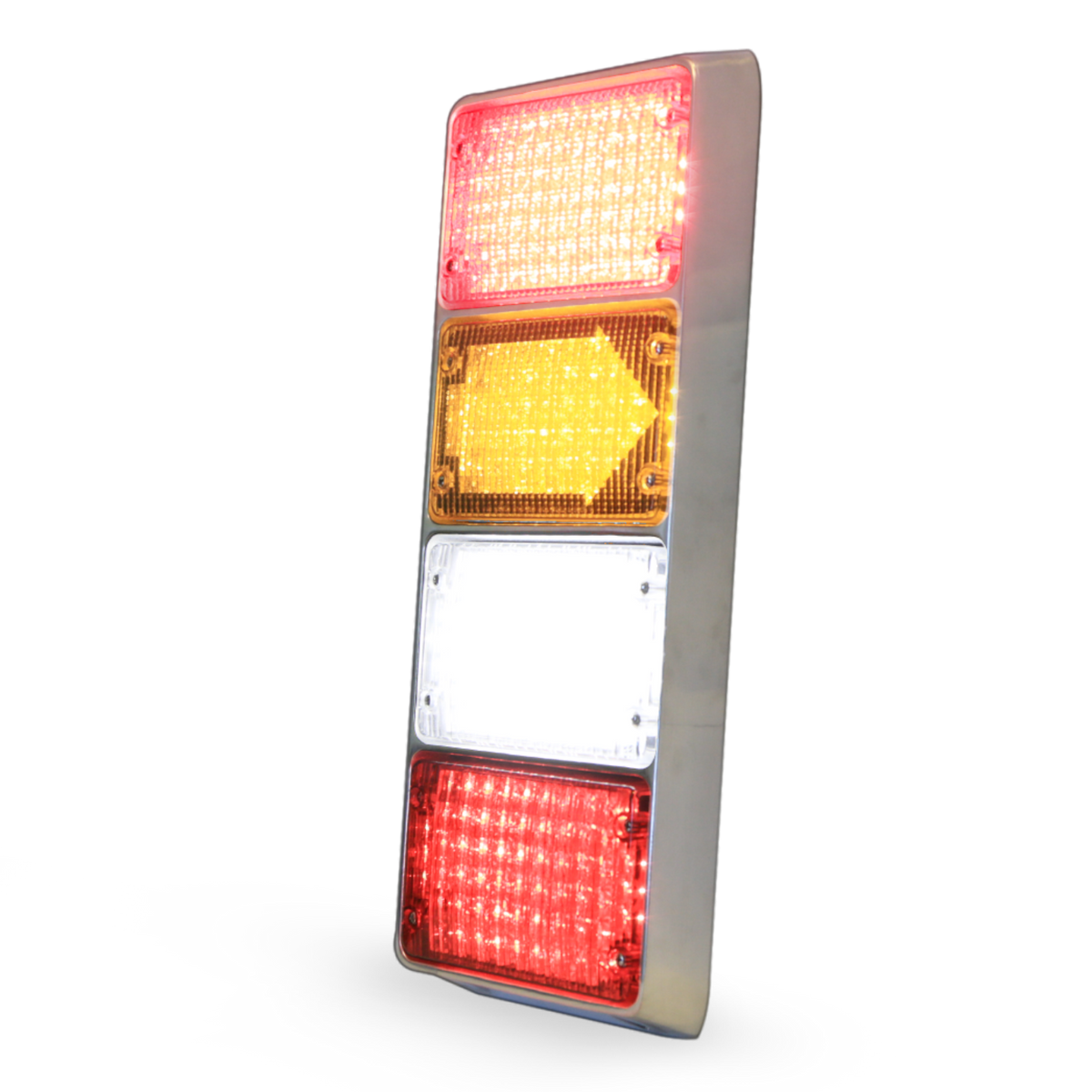

• 65PKG4 quad stack: 65STR, 65STA, 65W and 65R modules
• Surface mount; no large mounting holes required
• Standard industry mounting and dimensions
• Bezel included for water resistance

Specifications

• Voltage: 12V
• Current: 1.9A
• Triple stack: 15.0" H x 7.5" W x 1.9" D (with bezel)
• Quad stack: 19.5" H x 7.5" W x 1.9" D (with bezel)
• Certifications: J2040, J2261, DOT certified
