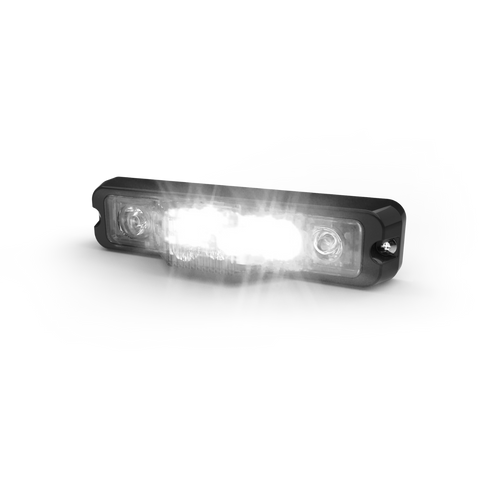

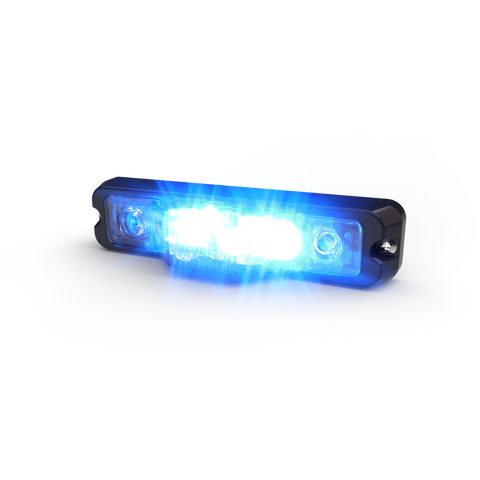

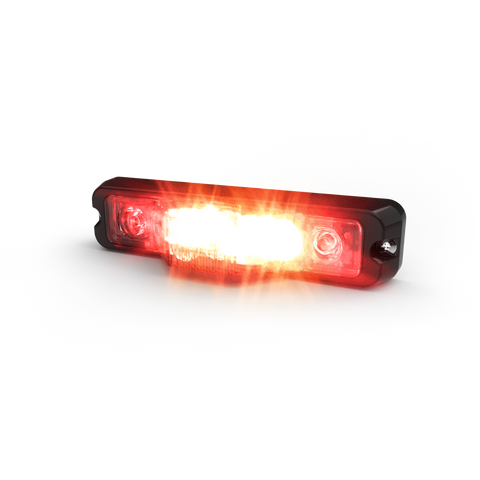

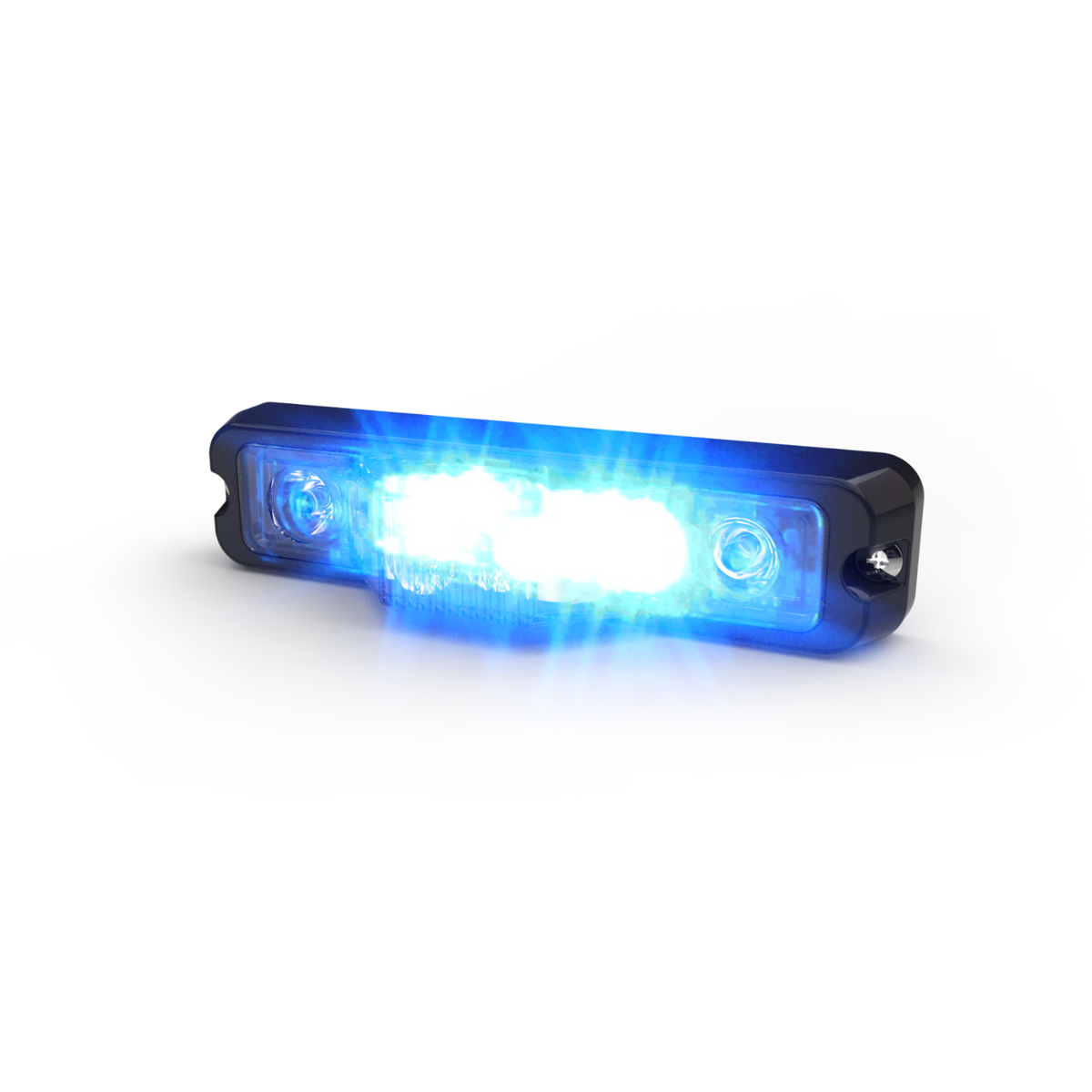

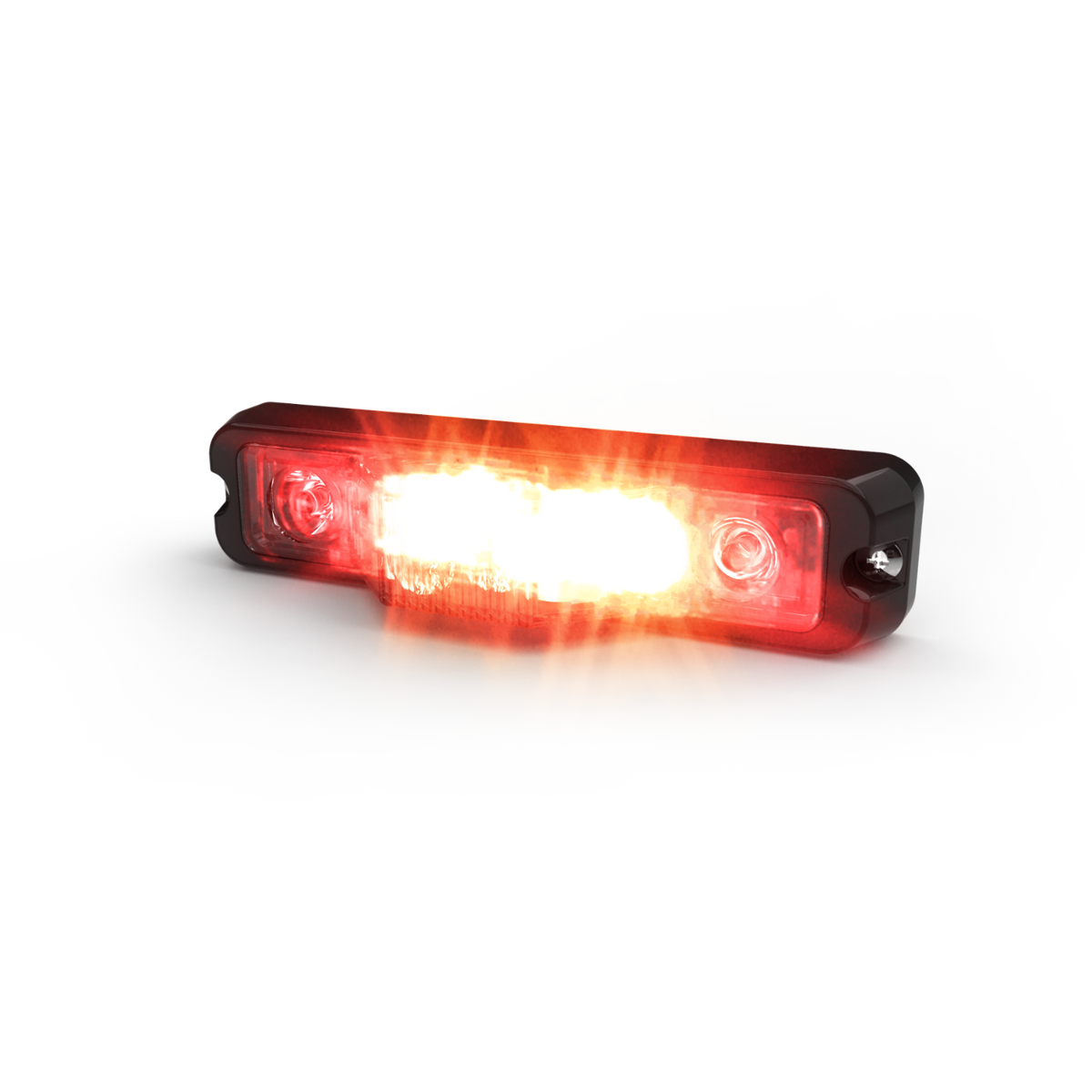

Code 3 M180 Series LED Multi-Mount Intersection Light

The M180 throws a 180-degree spread of single- or dual-color light from a low-profile body, combining intersection, takedown and ground lighting in one compact unit. Brackets are available for common pursuit vehicles.

Features

• 3-in-1: intersection light, takedown light and ground light
• 180-degree light output
• Brackets included for surface mount or edge mount with adjustable 30-degree pivot
• Steady-burn (-SB) models
• Matrix compatible: can be controlled and synchronized through a Code 3 Z3S siren or Switch Node
• Syncs with other Code 3 warning lights in the same sync group when set to matching flash patterns

Specifications

• Voltage: 12-24V
• Current: 1.3A (single-color), 1.4A (dual-color)
• Flash patterns: 29 (single-color), 69 (dual-color)
• Colors: Amber, Blue, Green, Red, White; dual-color Amber/Green, Amber/White, Blue/Amber, Blue/White, Red/Amber, Red/Blue, Red/White
• Dimensions: 1.2" H x 5.1" L x 1.4" D
• Mounting hole spacing: 4.74"
• Certifications: SAE J595 Class 1, SAE J845 Class 1, California Title 13, ECE R65, ECE R10, IP67, IP69K, RoHS
