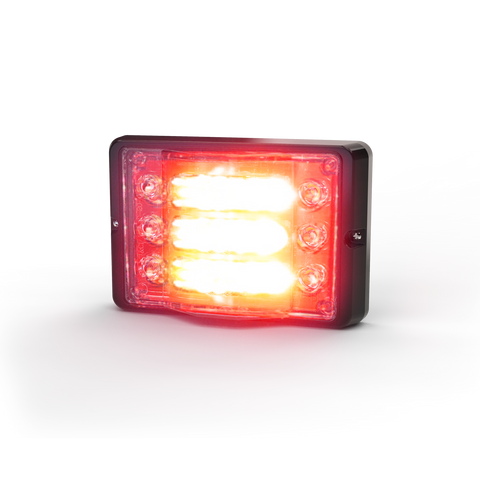

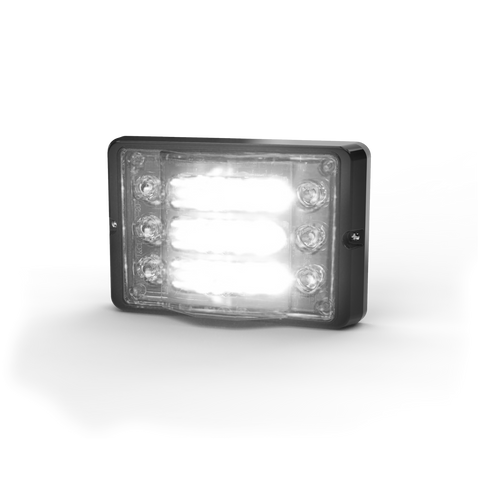

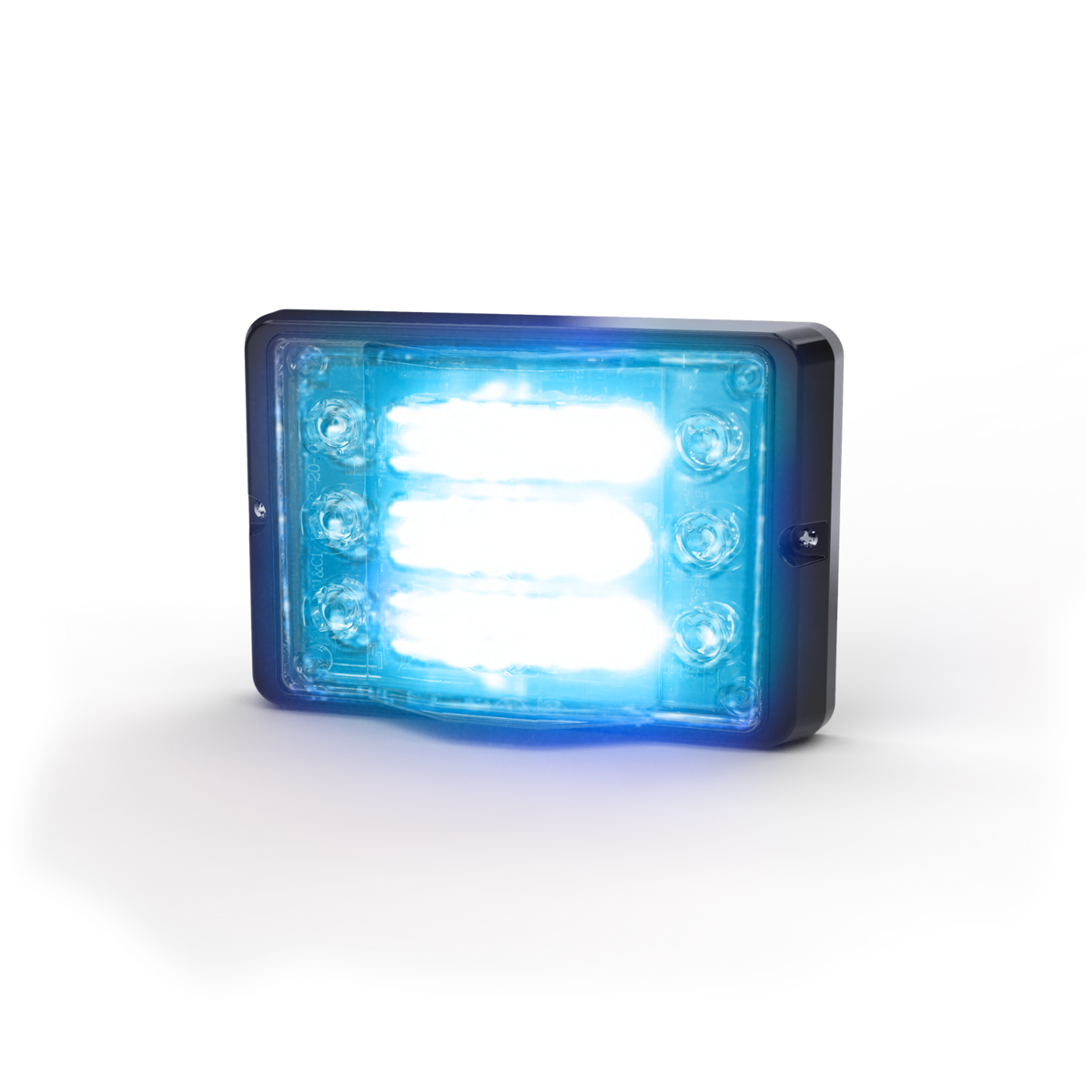

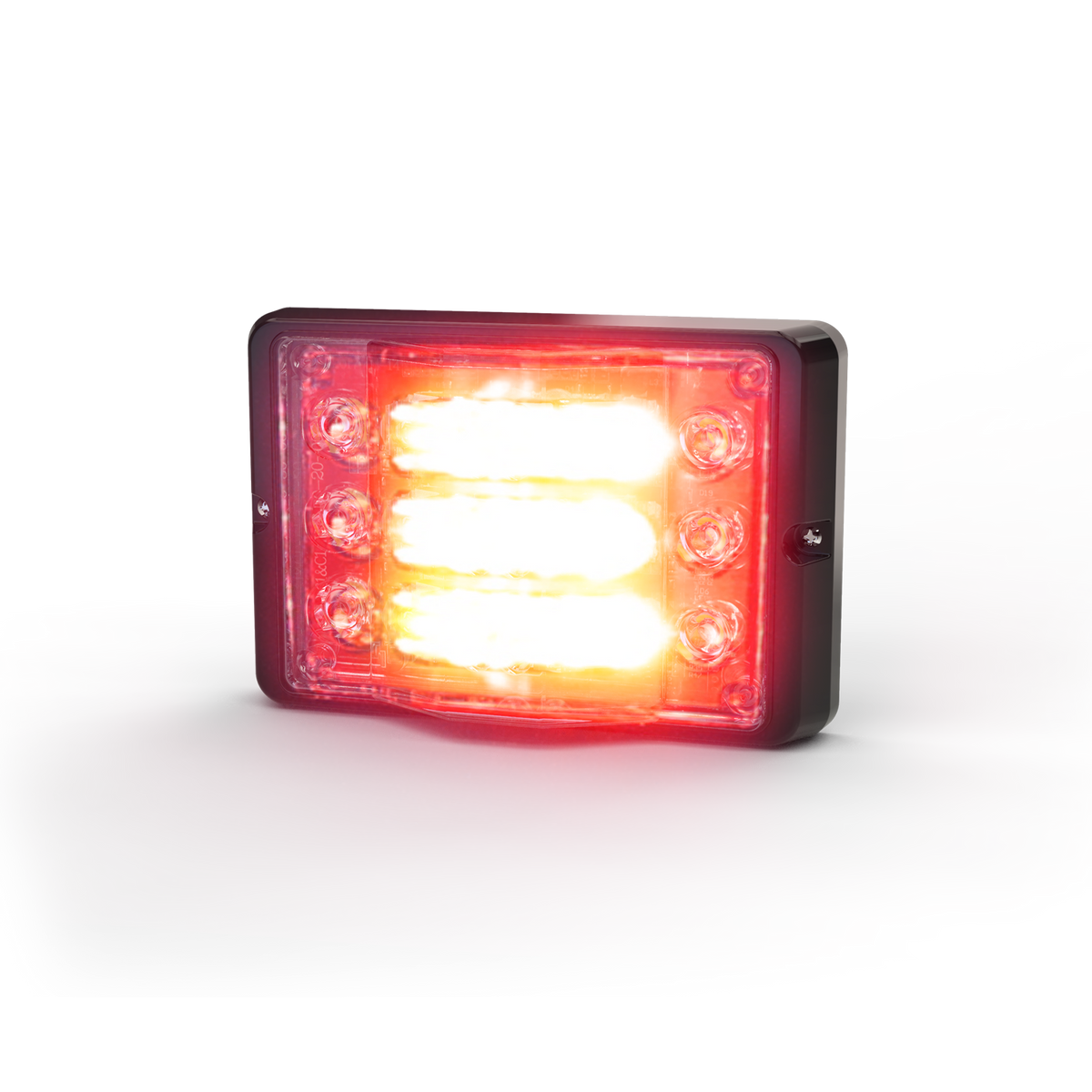

Code 3 M180L Triple Stack Series LED Warning and Work Light

Code 3 M180L Triple Stack Series LED Warning and Work Light

Regular price $260.52 USD
Regular price $372.17 USD Sale price $260.52 USD
Sale Sold out

SKU:M180L-A-SB

Color: Amber
Quantity

The M180L Triple Stack stacks three rows of LEDs to produce a wide 180-degree spread, giving you an intense warning light and a usable scene light in one unit.

Features

  • Warning light and scene light in one unit
  • Bright off-angle 180-degree output for alley, intersection and takedown lighting
  • Steady-burn capability; steady-burn (-SB) models
  • Matrix compatible: can be controlled and synchronized through a Code 3 Z3S siren or Switch Node
  • Syncs with other Code 3 warning lights in the same sync group when set to matching flash patterns

Specifications

  • Voltage: 12-24V
  • Current: 1.7A
  • Flash patterns: 29 (single-color), 69 (dual-color)
  • Colors: Amber, Blue, Green, Red, White; dual-color Amber/White, Blue/White, Red/Blue, Red/White
  • Dimensions: 3.4" H x 5.1" L x 1.4" D
  • Mounting hole spacing: 4.74"
  • Certifications: SAE J595 Class 1, SAE J845 Class 1S, California Title 13, ECE R65, ECE R10, IP67, IP69K, RoHS
