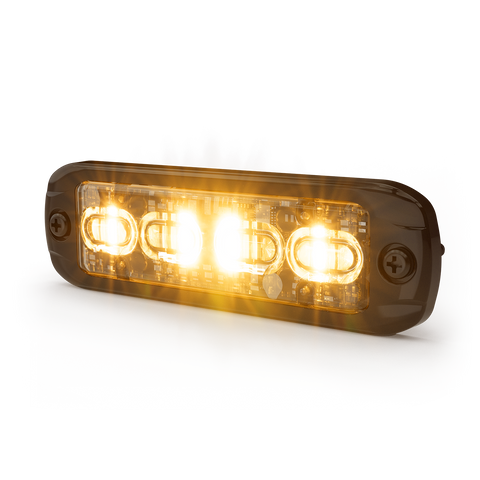

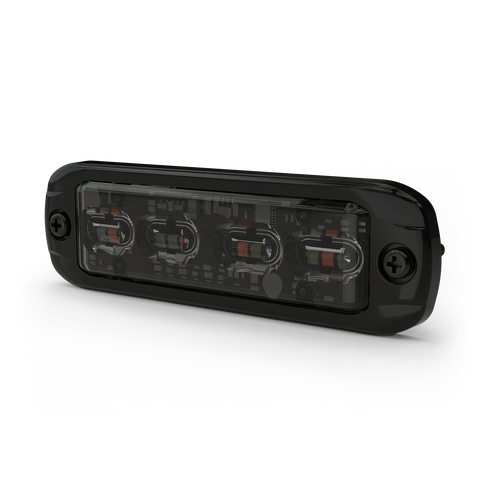

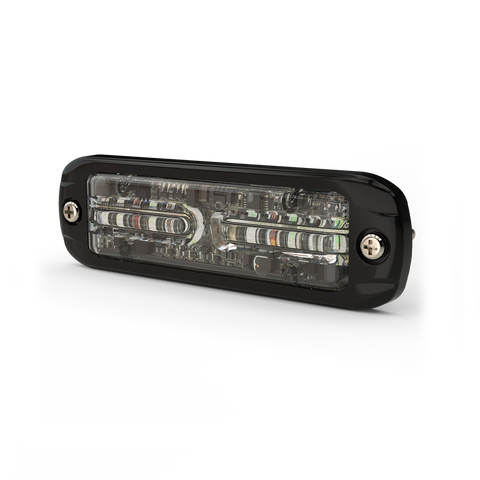

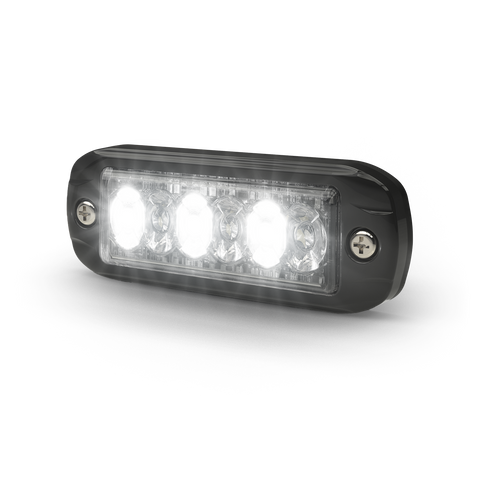

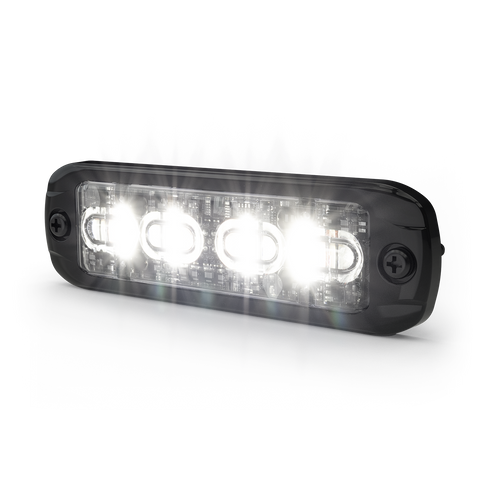

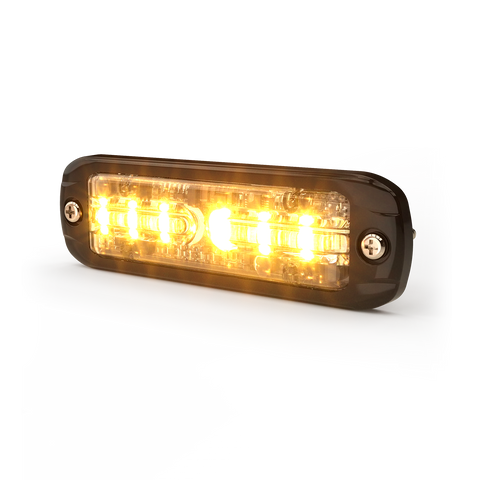

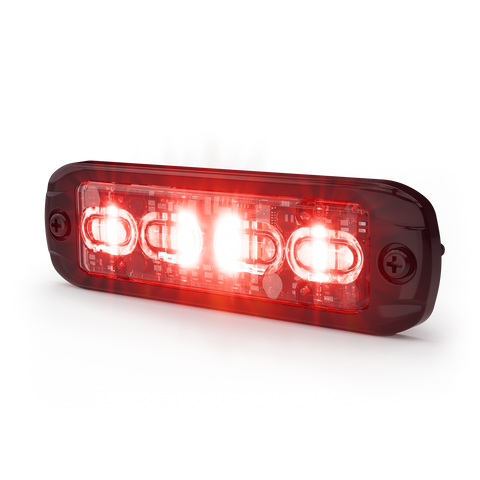

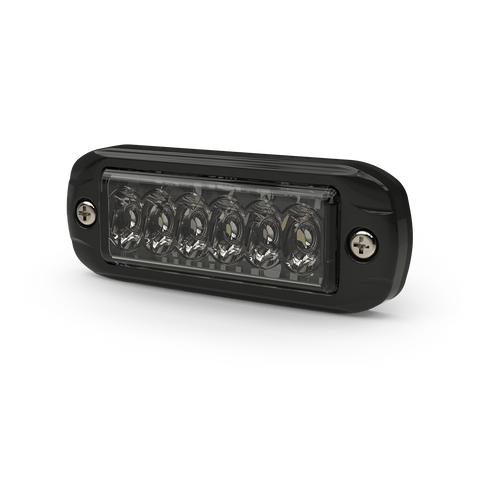

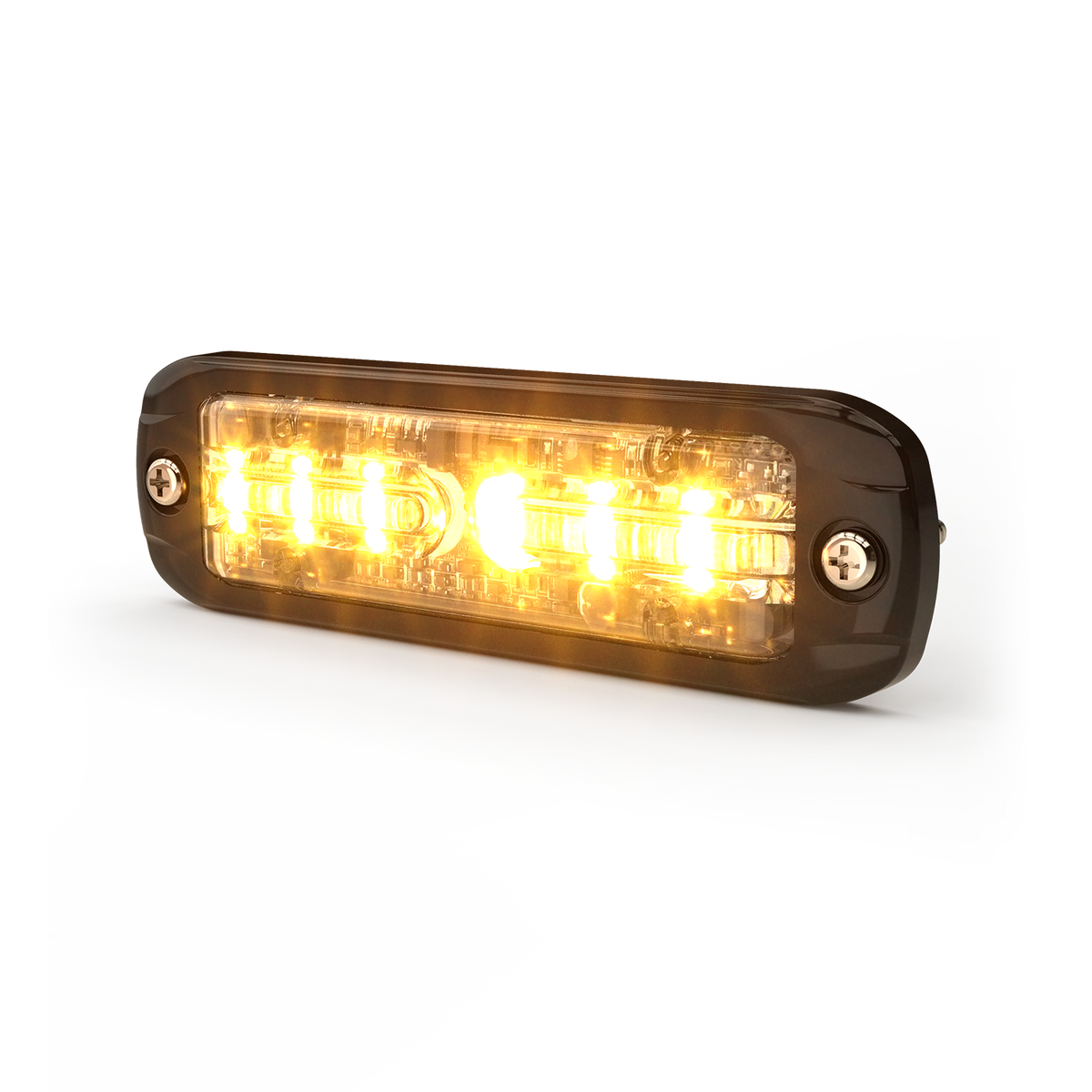

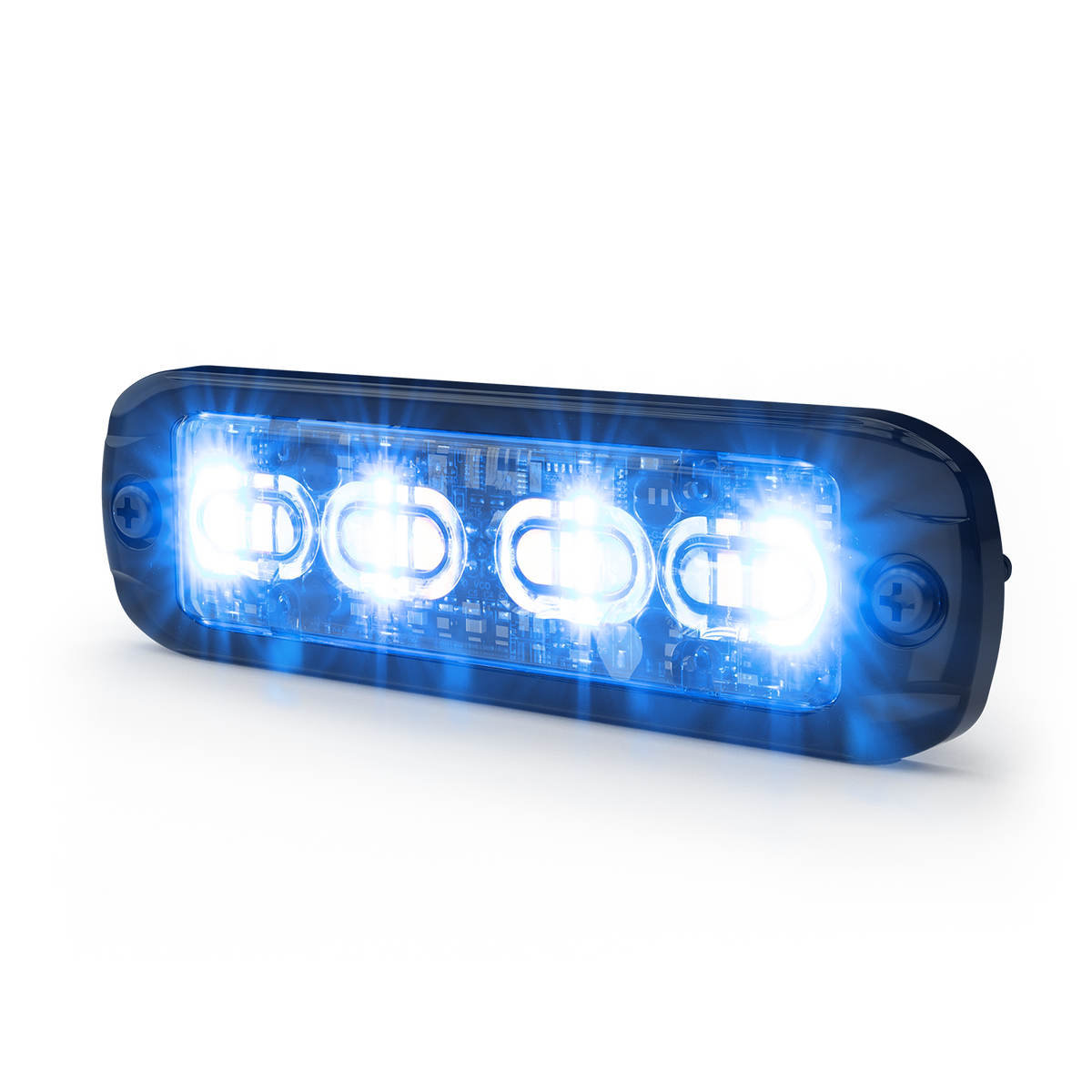

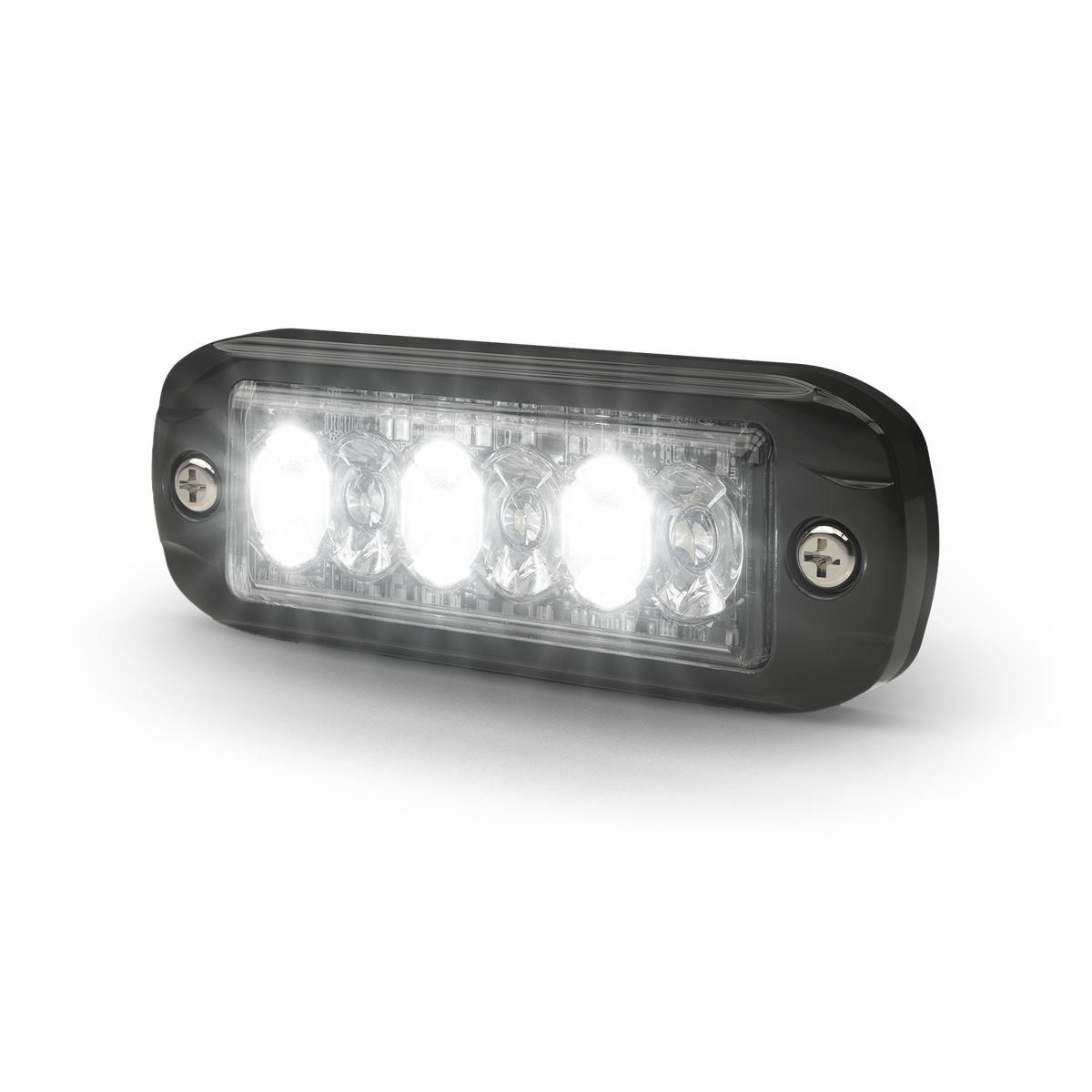

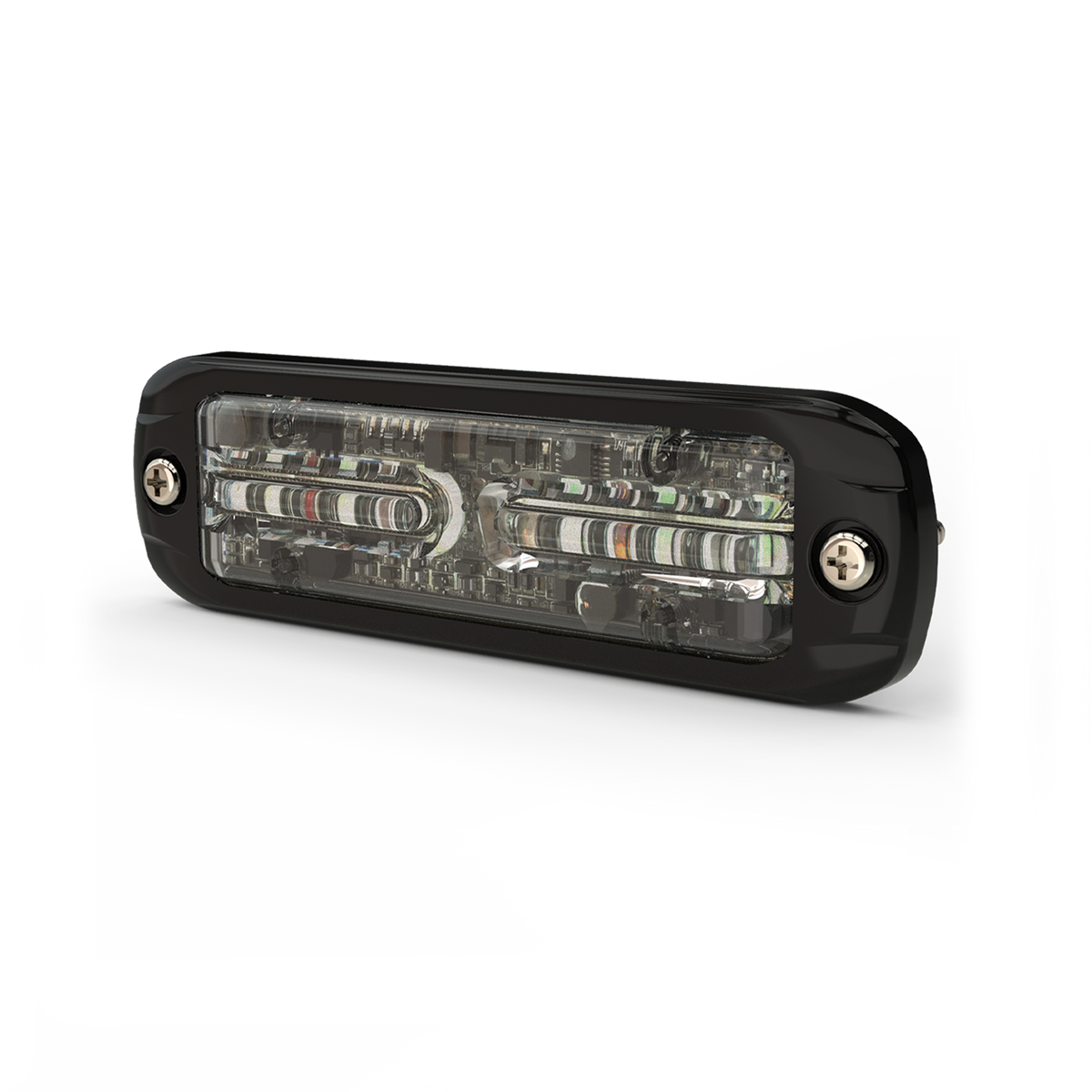

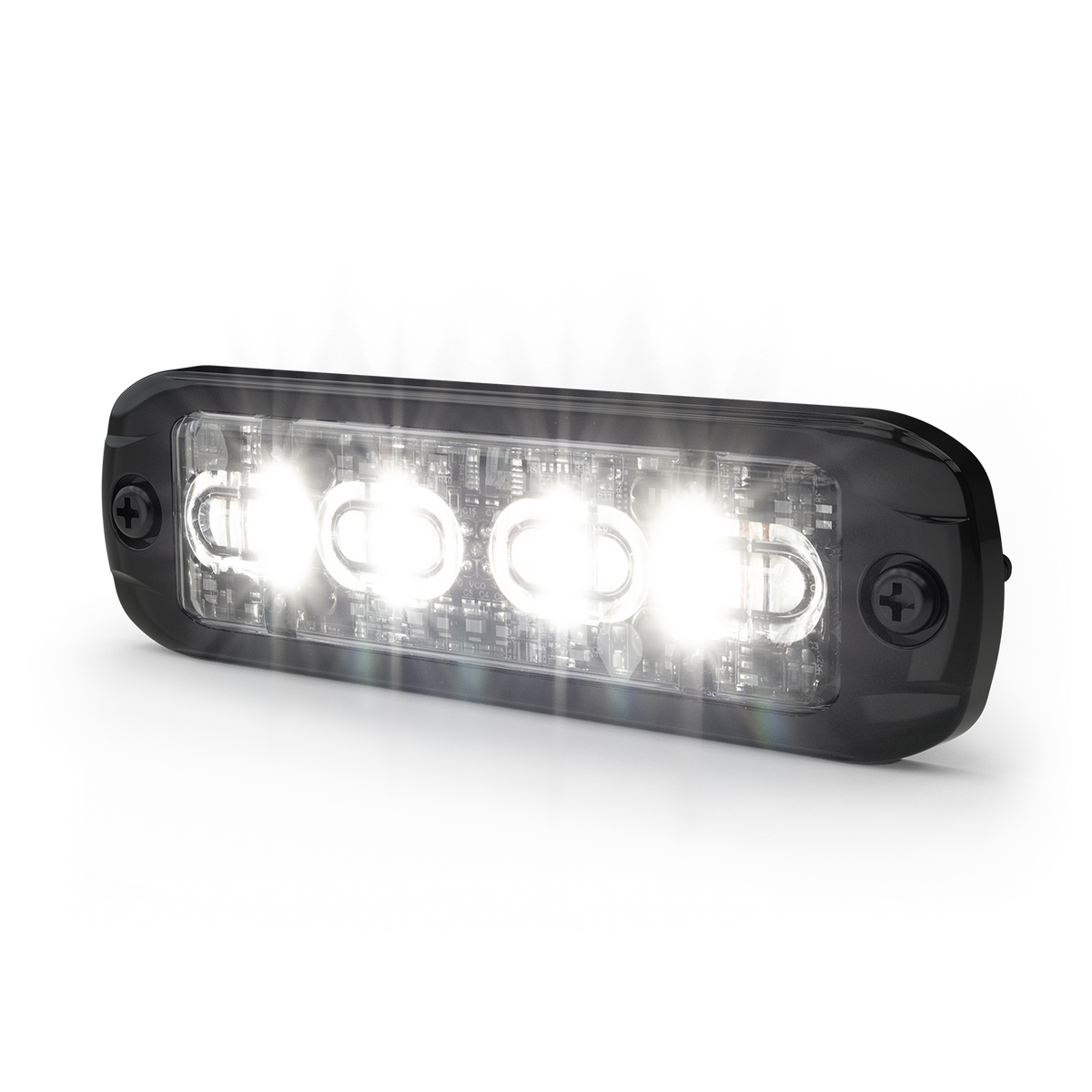

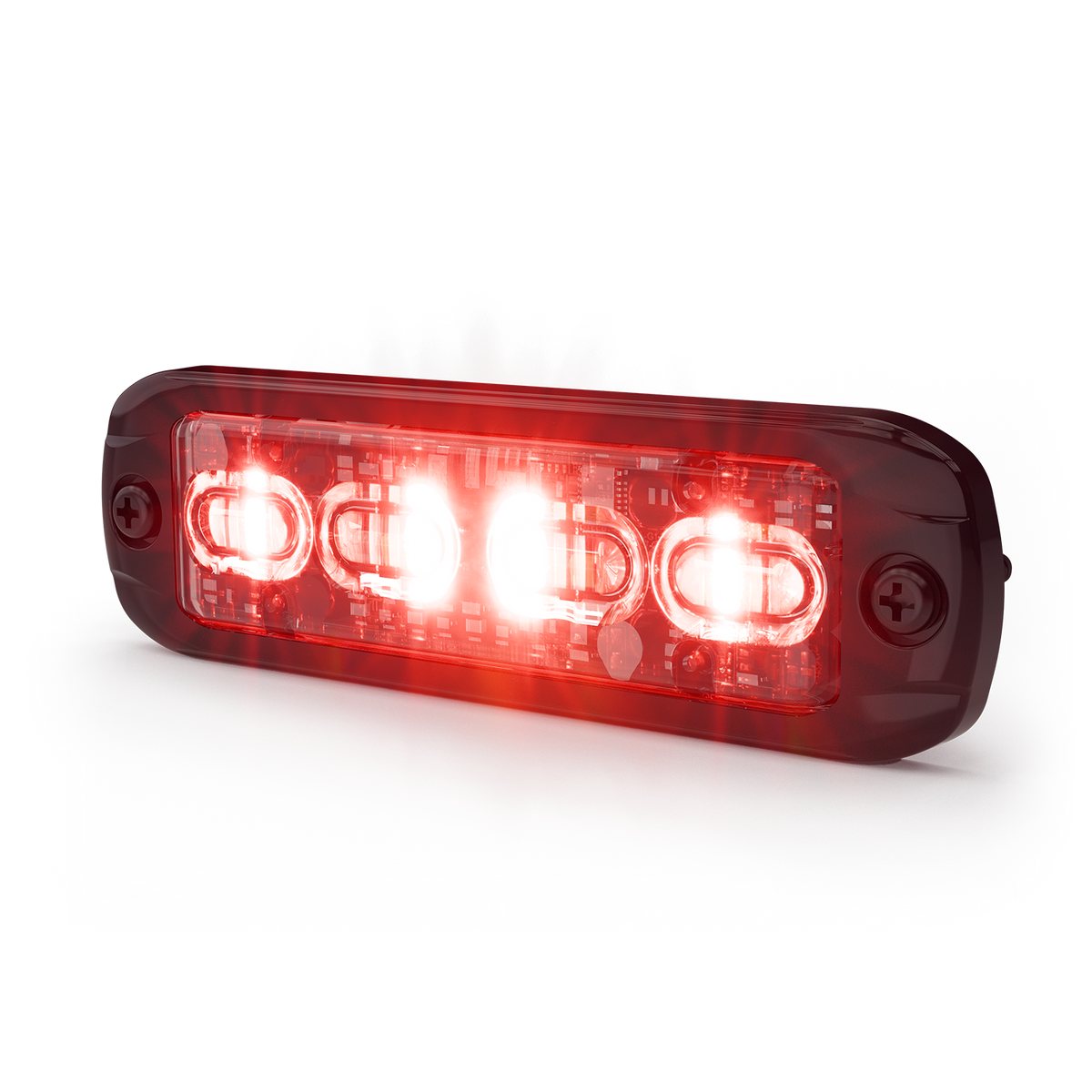

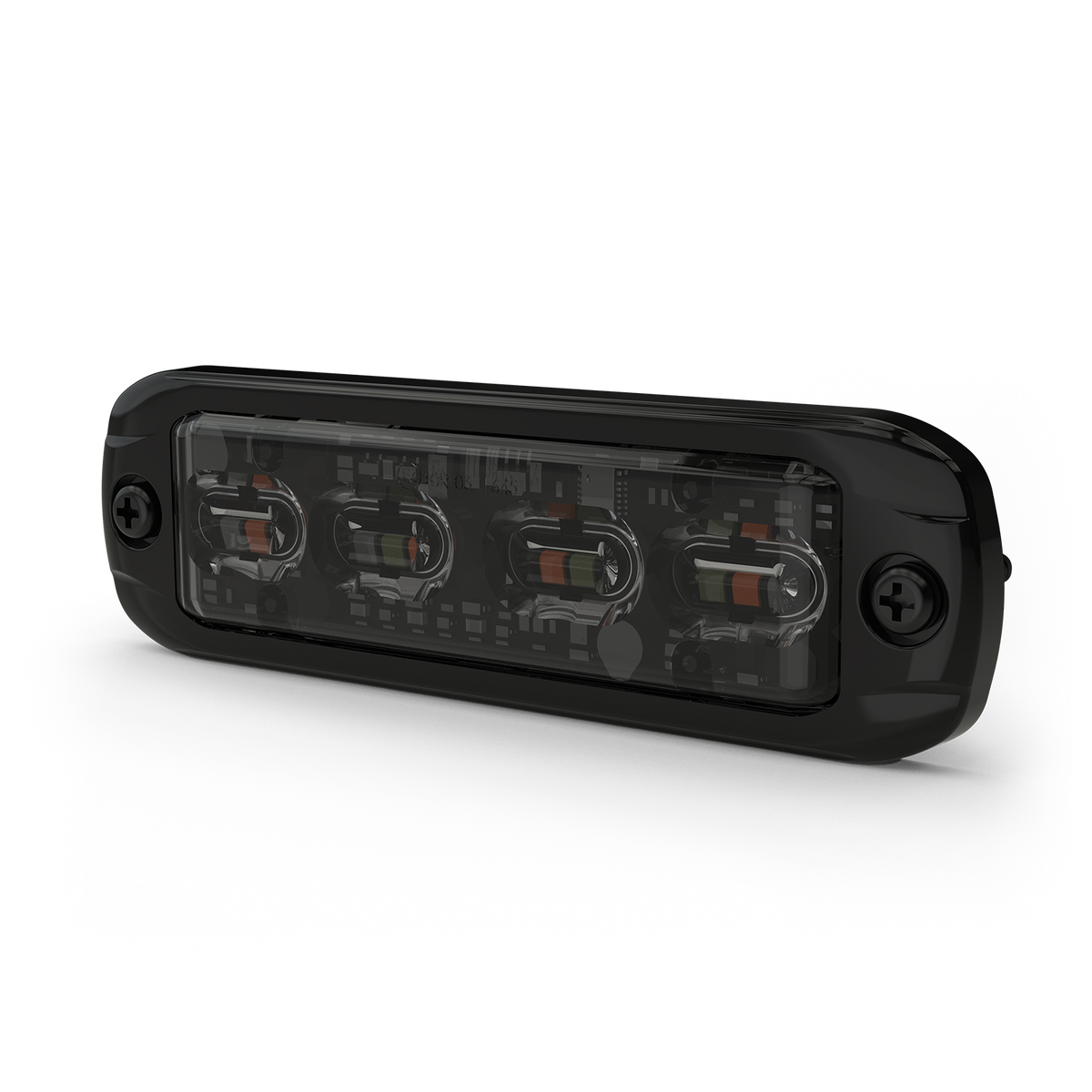

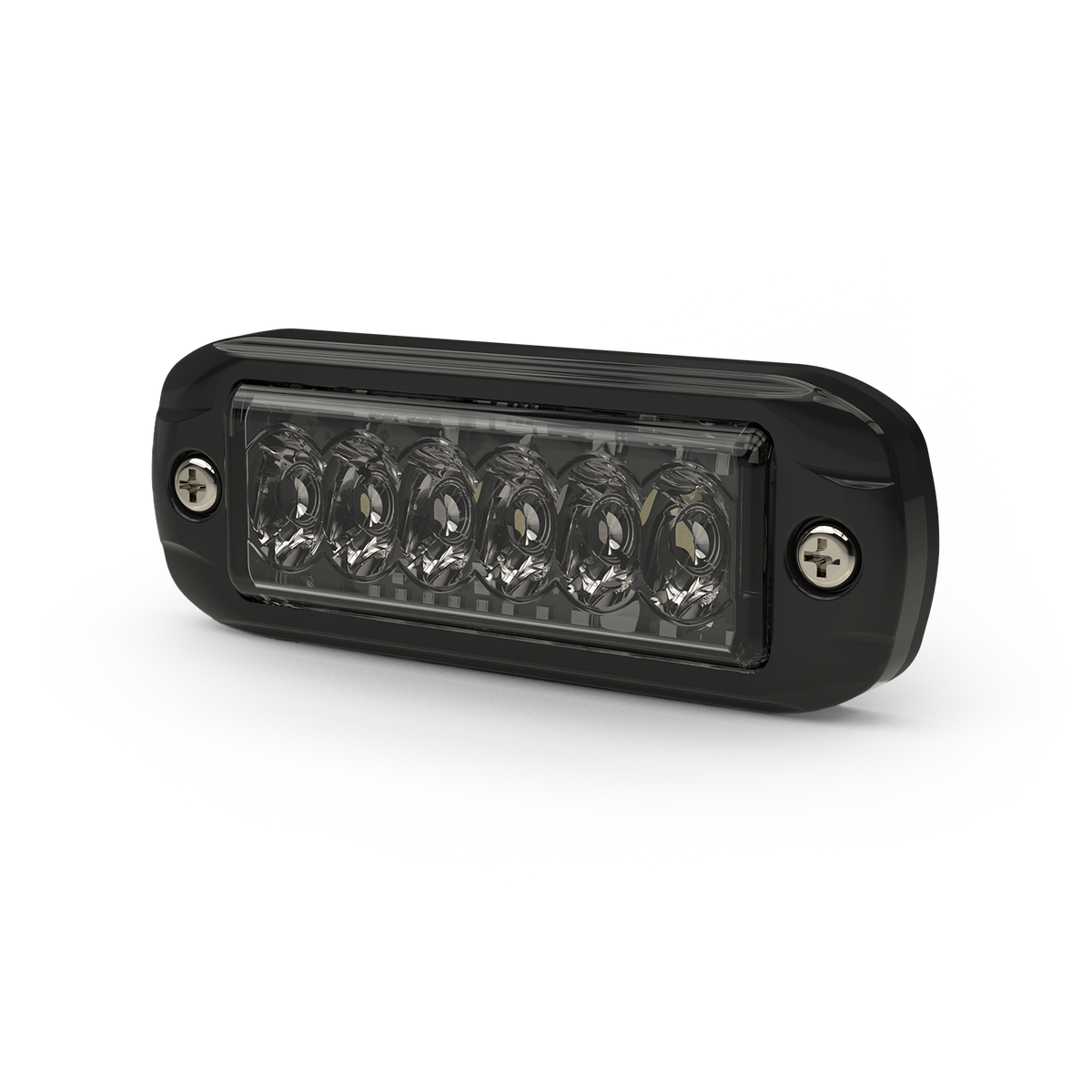

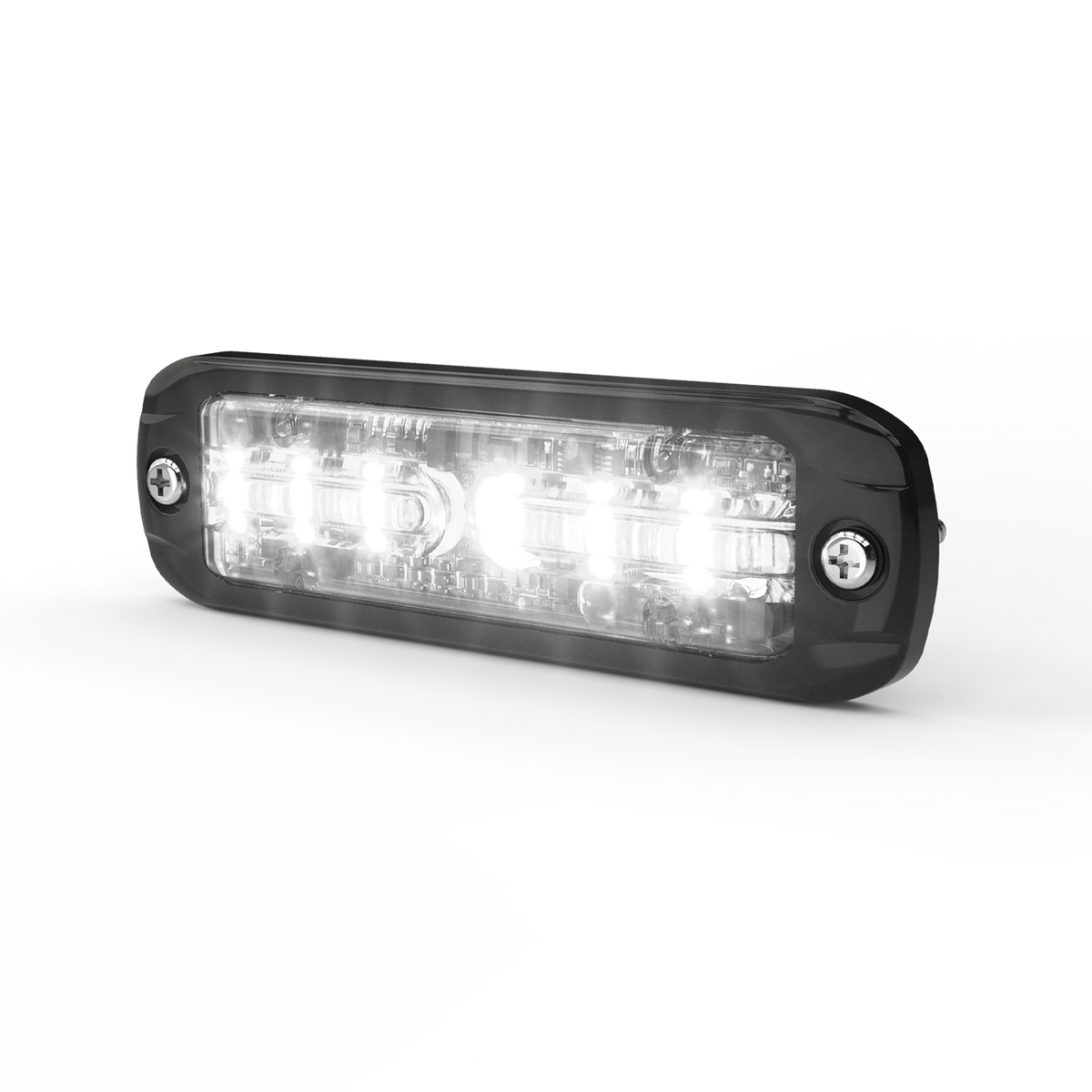

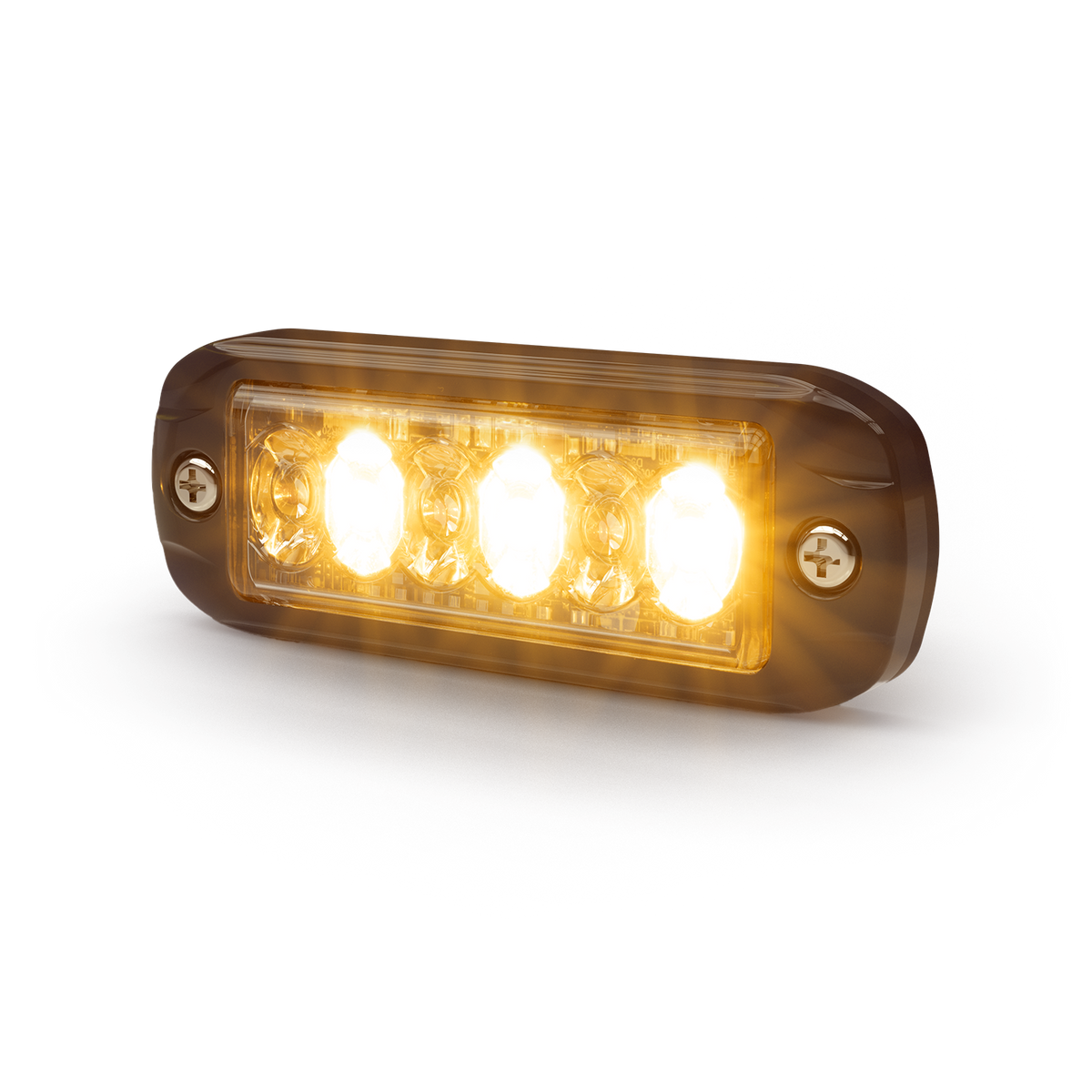

Code 3 Mega Thin Series LED Surface-Mount Warning Light

The Mega Thin is a sleek, ultra-low-profile surface-mount light, about 25% thinner than earlier models, for compact or discreet locations. Curved end optics deliver bright off-angle performance.

Features

• Curved end optics for strong off-angle warning
• Clear lens with 6 single-color, 12 dual-color or 18 tri-color LEDs
• Phase 1 and phase 2 sync with multiple flash patterns
• Aluminum housing and polycarbonate lens
• 25% thinner than previous models
• Matrix compatible: can be controlled and synchronized through a Code 3 Z3S siren or Switch Node
• Syncs with other Code 3 warning lights in the same sync group when set to matching flash patterns

Specifications

• Voltage: 12-24V
• Current: 0.76A (single-color), 0.73A (dual-color), 0.88A (tri-color)
• Flash patterns: 29 (single-color), 69 (dual-color), 135 (tri-color)
• Colors: Amber, Blue, Green, Red, White; dual-color Amber/Green, Amber/White, Blue/Amber, Blue/White, Red/Amber, Red/Blue, Red/White; tri-color Blue/Amber/White, Red/Amber/White, Red/Blue/Amber, Red/Blue/White
• Dimensions: 1.4" H x 4.75" L x 0.37" D
• Mounting hole spacing: 4.13"
• Certifications: SAE J595 Class 1, California Title 13 (amber, red and blue only), IP67, IP69K, NFPA, ECE R10, ECE R65 (single- and dual-color only), RoHS
• Certifications vary by color; see the spec sheet for your model.
