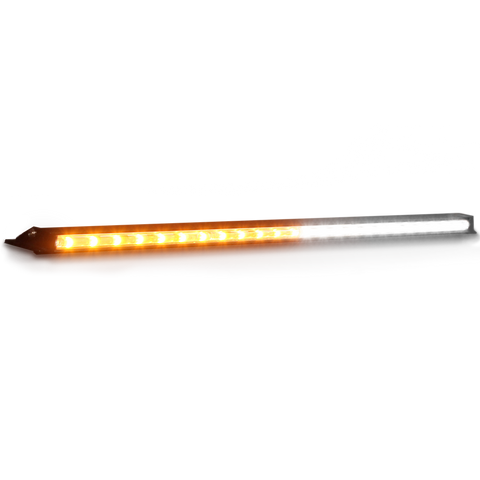

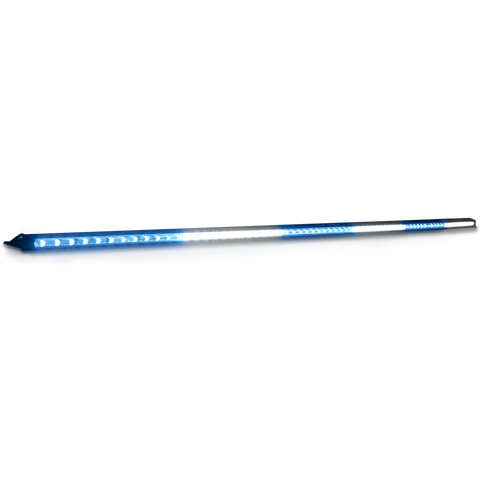

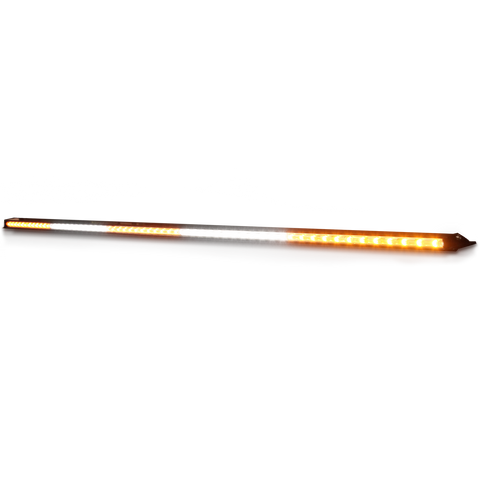

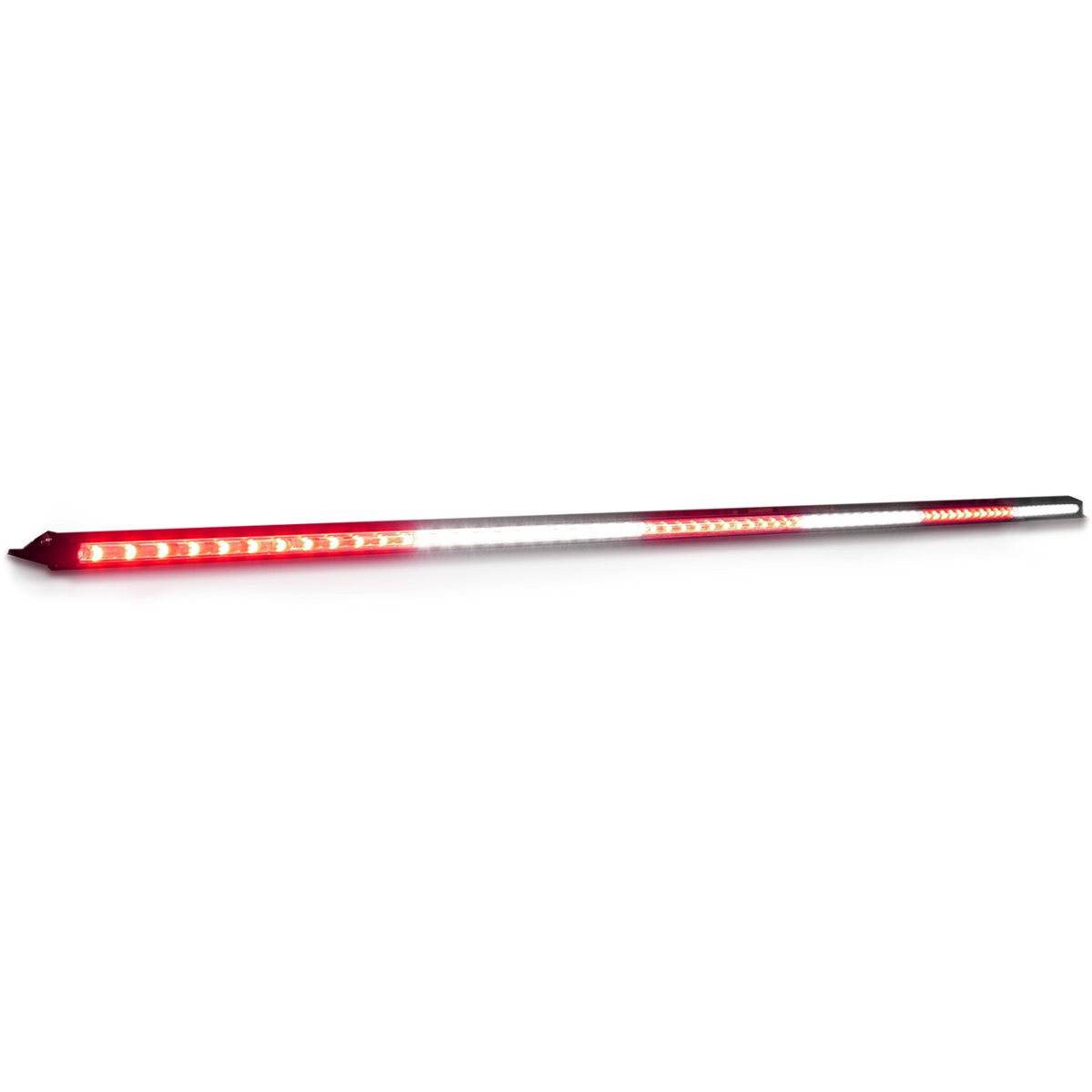

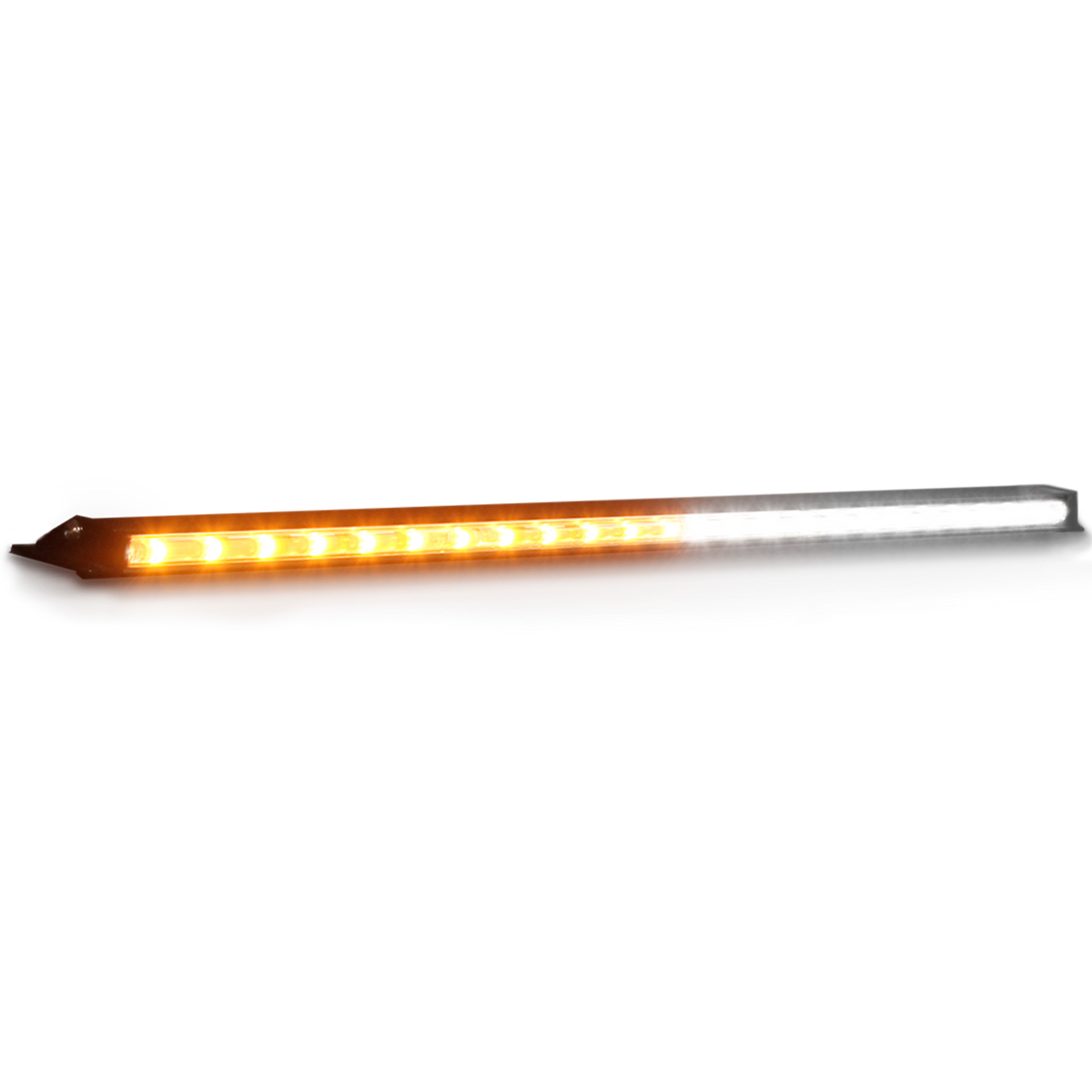

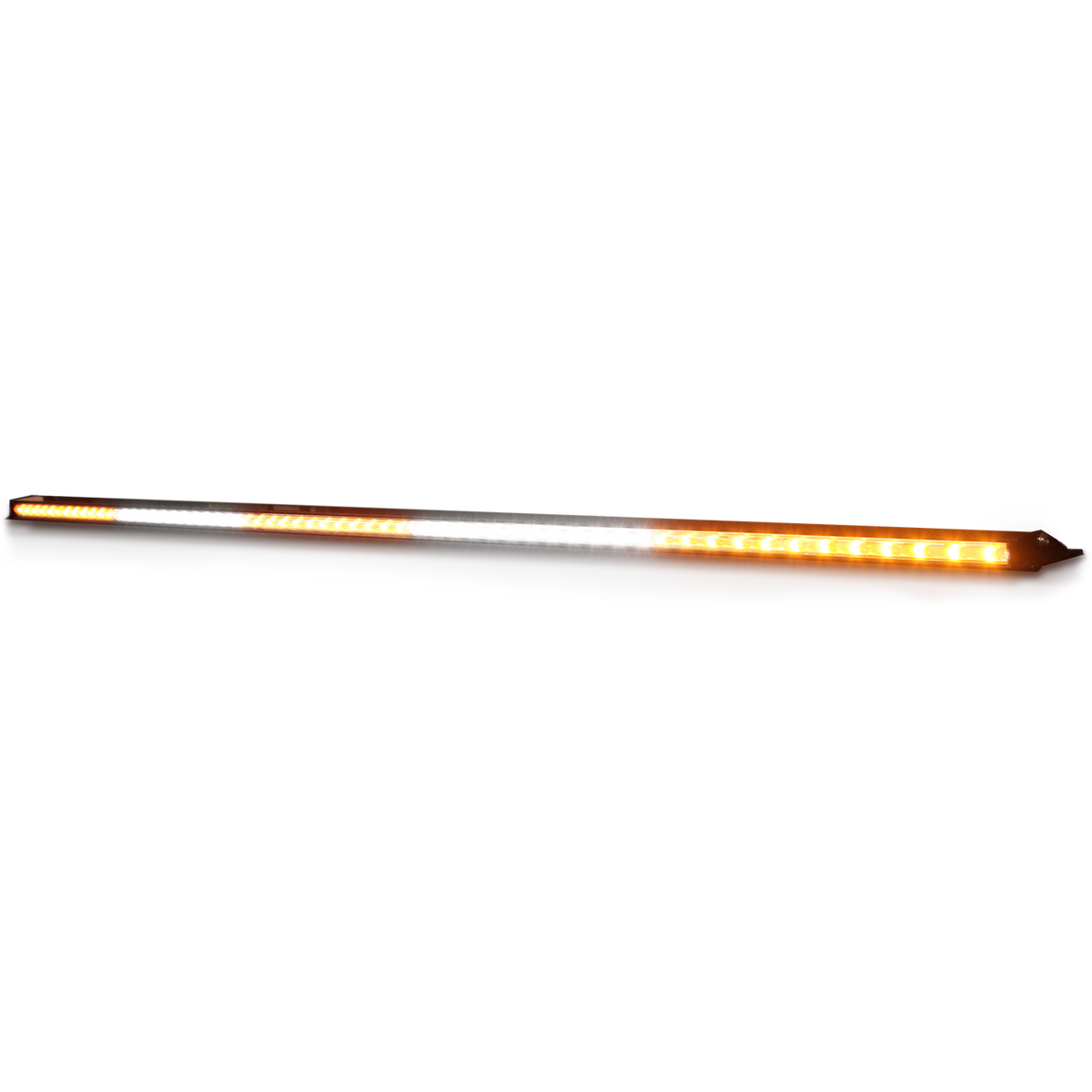

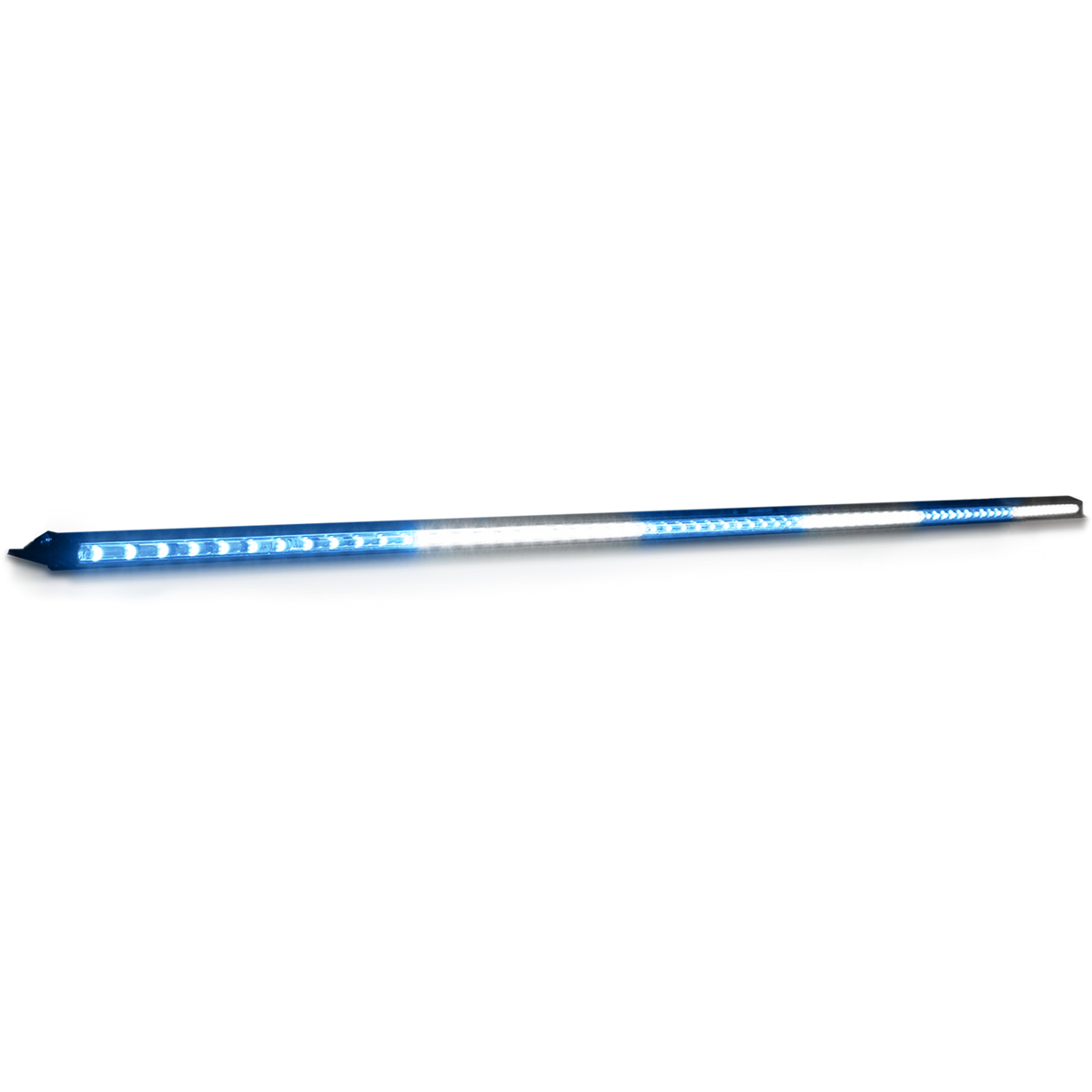

Code 3 Outliner Series LED Running Board Warning Light

The Outliner adds bright dual-color warning to running boards, push bumpers, tailgates and the inside of the rear window. A powder-coated aluminum frame and durable polycarbonate lens stand up to road spray and weather.

Features

• Dual-color lightheads in every 12" section
• 32 flash patterns, including steady burn in either color
• Universal surface-mount capability
• Powder-coated aluminum frame with durable polycarbonate lens
• Left or right wire exit
• Matrix compatible: can be controlled and synchronized through a Code 3 Z3S siren or Switch Node
• Syncs with other Code 3 warning lights in the same sync group when set to matching flash patterns

Specifications

• Voltage: 12V
• Flash patterns: 32
• Colors: Amber/White, Blue/White, Red/White, Blue/White + Red/White
• Lengths: 25.3", 37.3", 61.3", 73.3"
• Current: 0.5A (25.3"), 0.7A (37.3"), 1.0-1.1A (61.3"), 1.2-1.3A (73.3")
• Profile: 0.6" H x 2" D
• Certifications: SAE J595 Class 2 (amber, red and white), SAE J595 Class 3 (blue), California Title 13 (red only), IP67, RoHS
• Certifications vary by color; see the spec sheet for your model.
