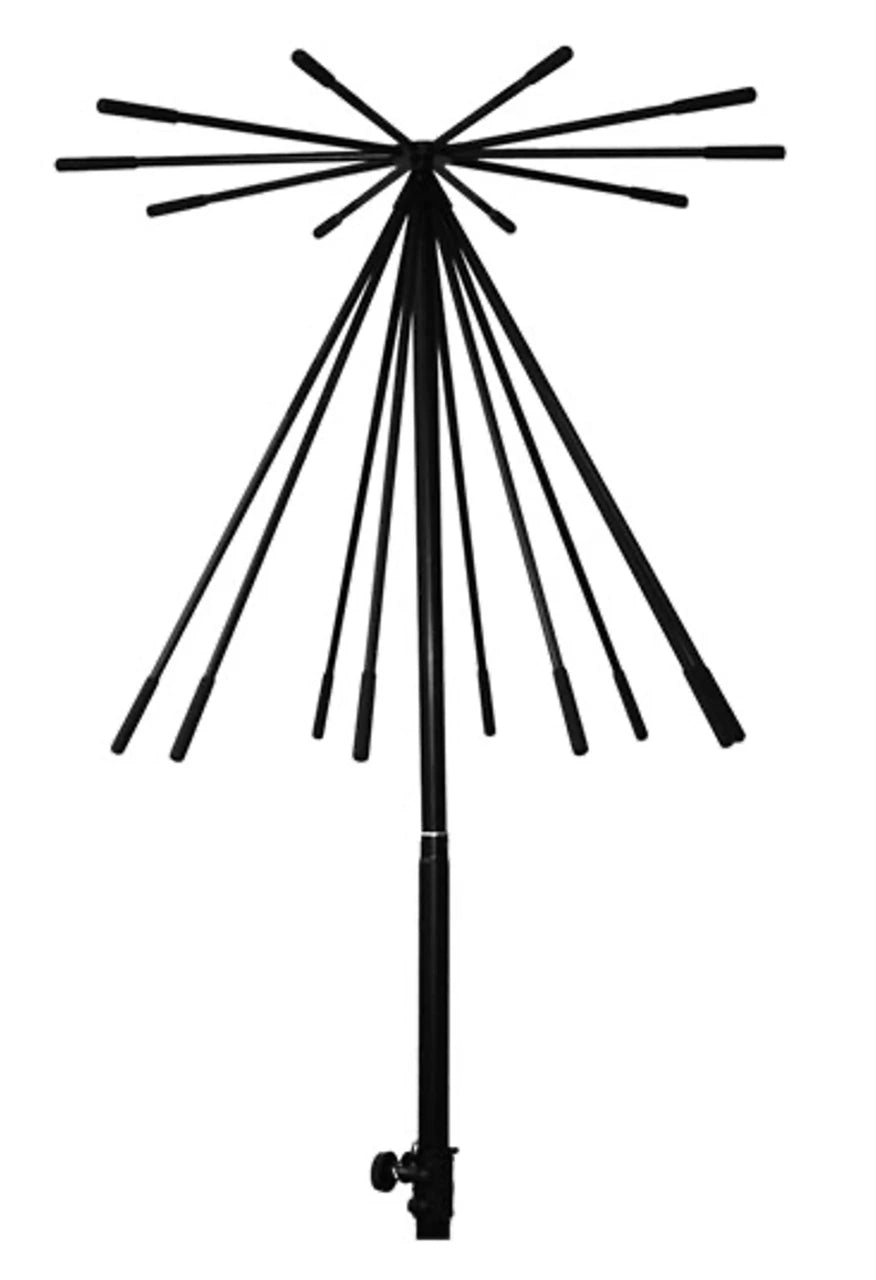

STI-CO IOAK-DC-ANT Interoperable Tactical Antenna Only - 150-1550 MHz

The wideband antenna element of the STI-CO Interoperable Tactical system, for single-port all-band radios and gateway systems with no coupler needed. Used by military and incident command teams.

Features

• VHF, UHF and 7/800 MHz coverage
• Single-port connection – no couplers needed
• Built for all-band radios and gateway systems
• Tool-free setup; optional tripod and storm case; 5-year warranty

Specifications

• Part number: IOAK-DC-ANT
• Frequency range: 150-174 / 380-512 / 758-896 MHz (150-1550 MHz wideband)
• Gain: Unity
• VSWR: <2:1
• Connector: N-type (TNC listed in spec table)
• Cable: 50' low-loss kit; 72" feedline option
• Dimensions: 35.5" max height; 1.25" aluminum shaft
