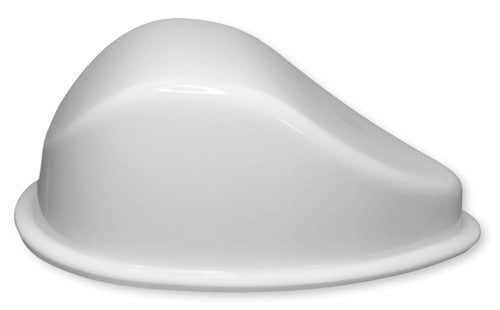

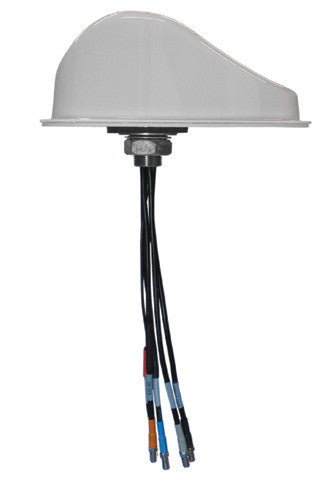

STI-CO MRLP-XX-LLG22 WavStreamer Antenna

A 5-in-1 MIMO roof antenna combining two LTE, two Wi-Fi and one GPS element in one low radome. Made for rail, transit and public safety vehicles running onboard routers.

Features

• 2x LTE, 2x Wi-Fi and GPS in one housing
• Single-hole feed-through installation
• Cables and connectors built to suit the install
• Tested to SAE J1455, AREMA and MIL-STD-810; -40 °C to +75 °C
• Made in the U.S.A.; 5-year warranty

Specifications

• Part number: MRLP-XX-LLG22
• Frequency range: LTE 698-960 / 1700-2700 MHz; Wi-Fi 2400-2500 / 4900-5900 MHz; GPS/Galileo/GLONASS
• VSWR: LTE <2.25:1 / <2.0:1; Wi-Fi <1.75:1 / <2.0:1
• Connector: SMA female (others available)
• Mount: 1" dia. feed-through, up to 1/2" surface
• Cable: LMR-195-FR (LTE/Wi-Fi), LMR-100A-FR (GPS); custom lengths
• Dimensions: 9.2" L x 6" W x 3.6" H
