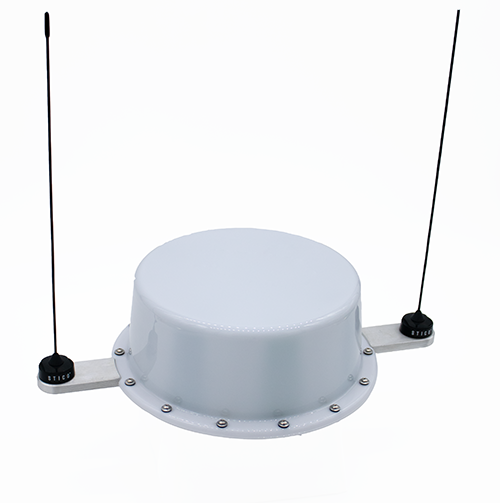

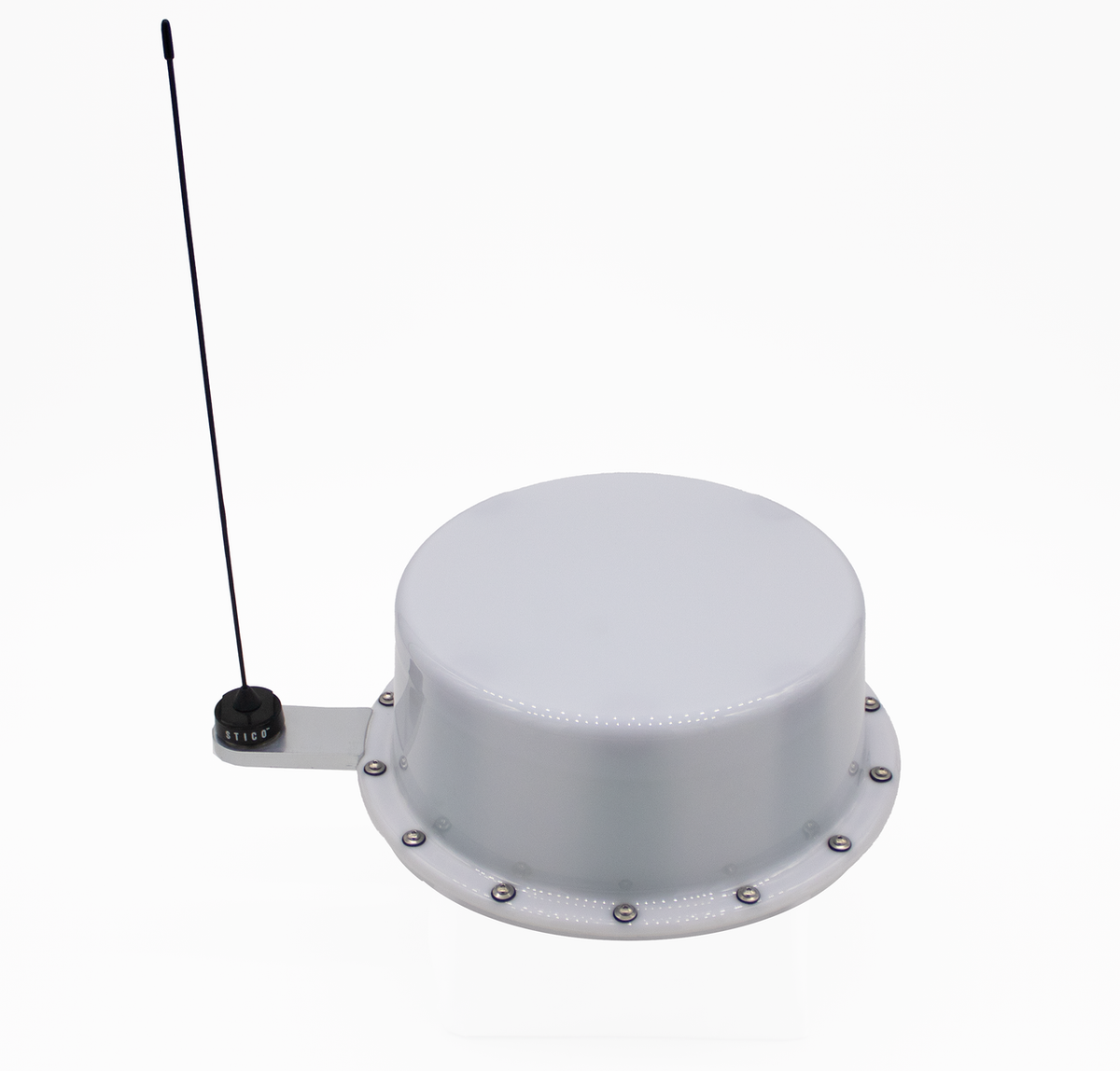

STI-CO Multi-Band 8:1 MIMO Vehicle Antenna

A single-hole roof-mount MIMO antenna that packs LTE/5G, Wi-Fi, GPS/GNSS, 220 MHz and 900 MHz elements into one rugged radome. Built for rail, transit, public safety and other fleet vehicles that need several data and voice links from one install point.

Features

• 8:1 MIMO design: 4x LTE/5G, Wi-Fi, GPS/GNSS, 220 MHz and 900 MHz
• One-hole feed-through mount keeps installation simple
• Tested to SAE J1455, AREMA and MIL-STD-810 environmental standards
• Polycarbonate radome rated -40 °C to +75 °C
• Made in the U.S.A. with a 5-year warranty

Specifications

• Part number: Contact for quote
• Frequency range: LTE 698-960 / 1700-2700 MHz; Wi-Fi 2400-2500 / 4900-5900 MHz; GPS/Galileo/GLONASS
• VSWR: LTE <2.25:1 (698-960 MHz), <2.0:1 (1700-2300 MHz); Wi-Fi <1.75:1 / <2.0:1
• Connector: SMA female (others available)
• Mount: 1" dia. feed-through, 1.3" threaded boss for surfaces up to 1/2" thick

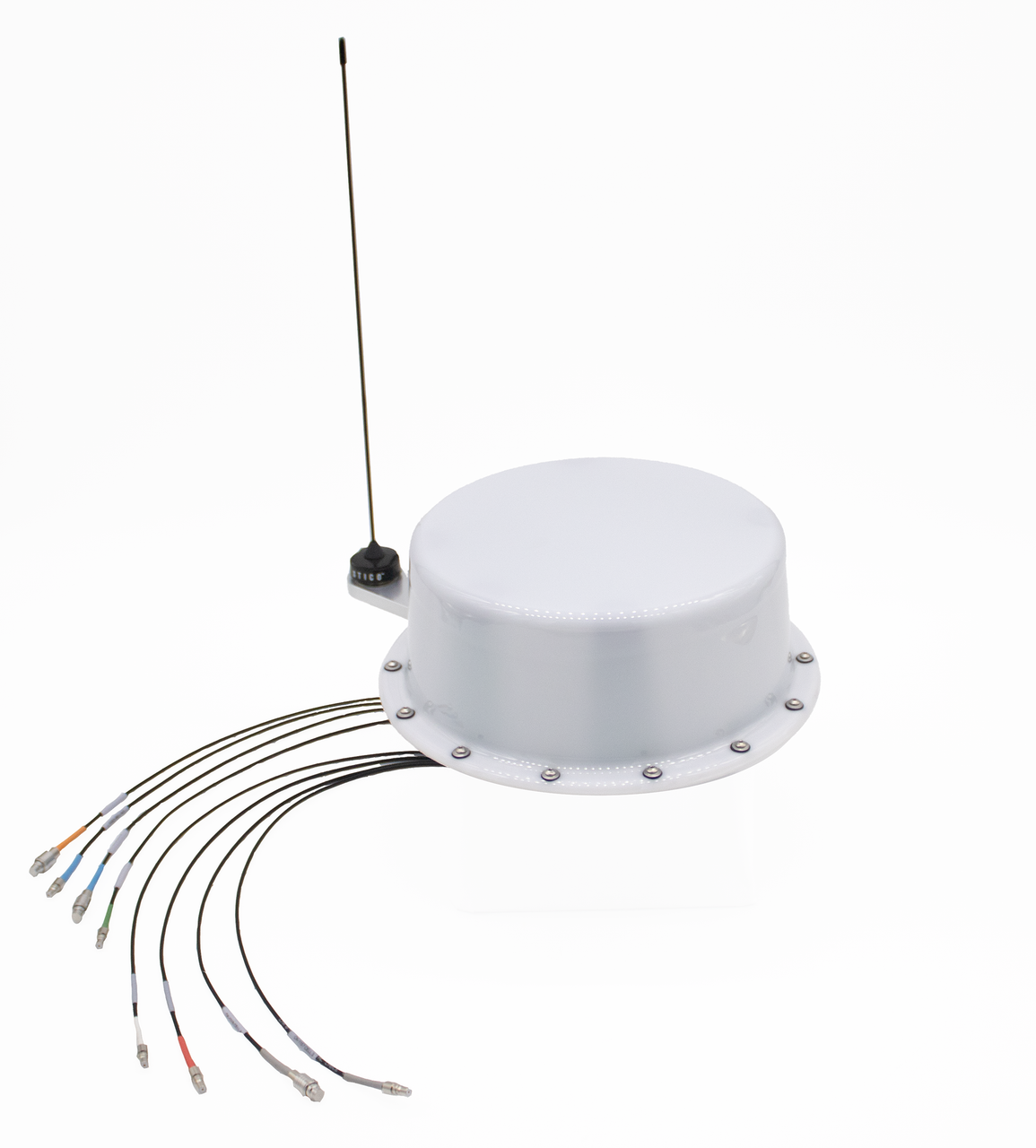

• Cable: LMR-195-FR (LTE/Wi-Fi), LMR-100A-FR (GPS); custom lengths
• Dimensions: 9.2" L x 6" W x 3.6" H
