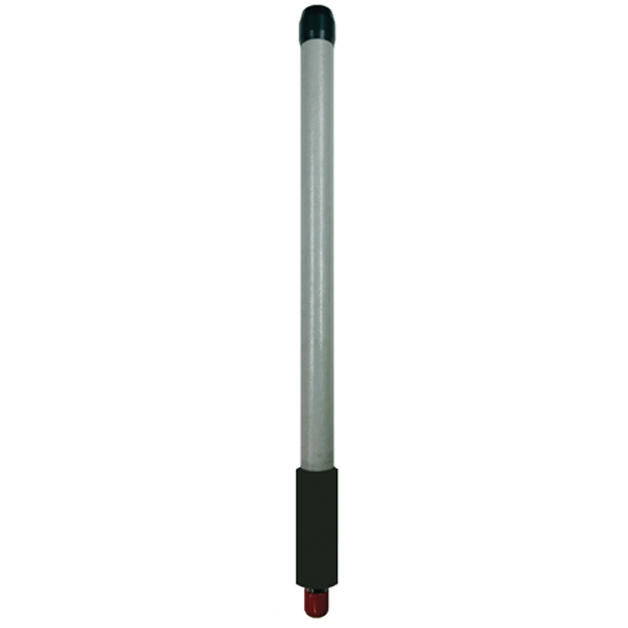

STI-CO OMNI-DB-7-800/PCS LTE Base Station Antenna

An omnidirectional fixed-site antenna for 4G LTE that still supports legacy 700/800 MHz and PCS cellular systems. Used at rail wayside and base station sites.

Features

• Single port covers 700, 800 and PCS bands
• UV-protected fiberglass radome over a brass mast
• Wide bandwidth and stable pattern for data-heavy use
• Made in the U.S.A.

Specifications

• Part number: OMNI-DB-7-800/PCS
• Frequency range: 760-870 & 1850-1950 MHz
• Gain: 2.1 dBi
• VSWR: <2:1
• Connector: N female
• Mount: Base station / fixed site
• Dimensions: 19" max height
