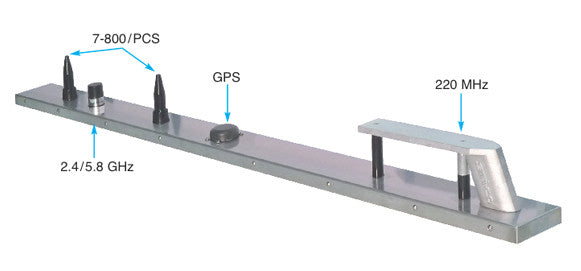

STI-CO PTC Dual Track Antenna System

A configurable multi-antenna diversity system built for Positive Train Control (PTC) on locomotives. Combines antennas from VHF to 5.8 GHz plus GPS on a bar that needs only one hole per track.

Features

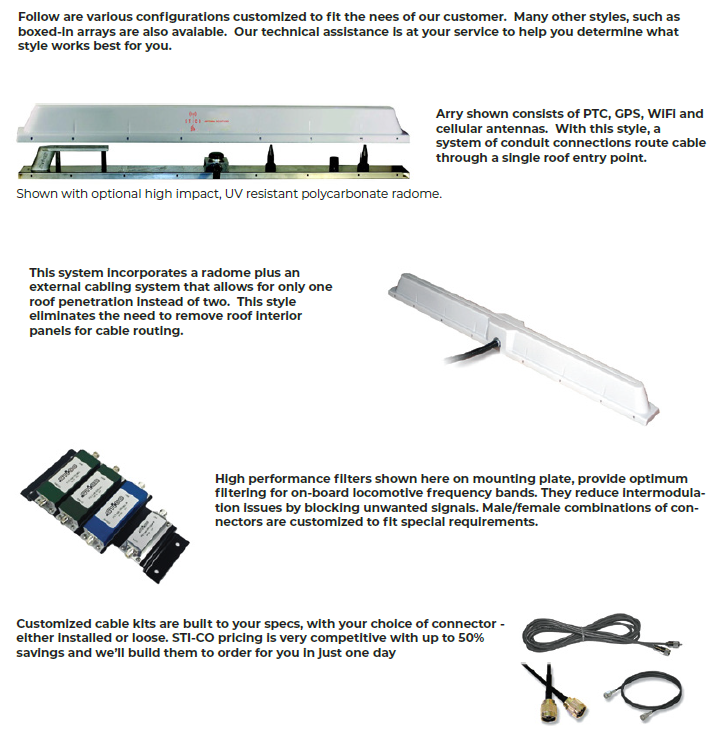

• Custom antenna combinations from VHF to 5.8 GHz plus GPS
• One roof penetration per track saves install time and cost
• Individual antennas replaceable with minimal downtime

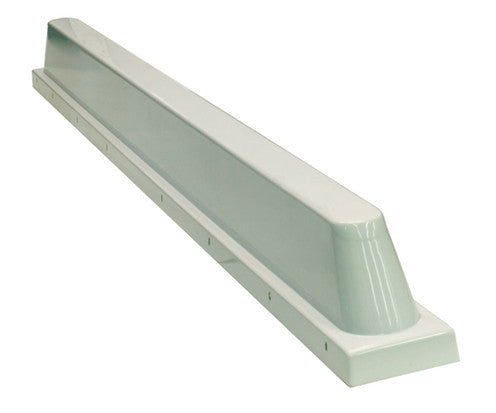

• Optional radome against snow pack and strikes
• Color-coded custom cable harness; optional 160/220/450/7-800 MHz filters
• Single or dual antenna bar; corrosion-resistant build

Specifications

• Part number: configured to order
• Frequency range: VHF to 5.8 GHz and GPS
• Mount: Locomotive roof, one hole per track
• Cable: Custom color-coded harness
