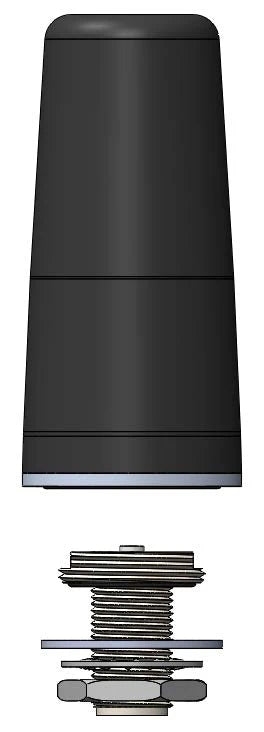

STI-CO RFMT-UWB-7/3000-MIL Ultra-Wideband Antenna System

A compact low-profile antenna covering 700 MHz to 3 GHz for LTE, FirstNet, public safety and private networks. Used on buses, rail, public safety and military vehicles where one rugged antenna has to cover many bands.

Features

• Continuous 700-3000 MHz coverage
• 360° omnidirectional pattern
• HF-NMO base for simple installation
• Designed to MIL-STD-810, AREMA, IPX7 and SAE J1455
• Made in the U.S.A.; 5-year warranty

Specifications

• Part number: RFMT-UWB-7/3000-MIL
• Frequency range: 700-3000 MHz
• Gain: 4.3 dBi typical peak
• VSWR: <3:1
• Connector: HF-NMO
• Mount: NMO (5/8" hole)
• Dimensions: 3.61" H x 1.67" dia.
