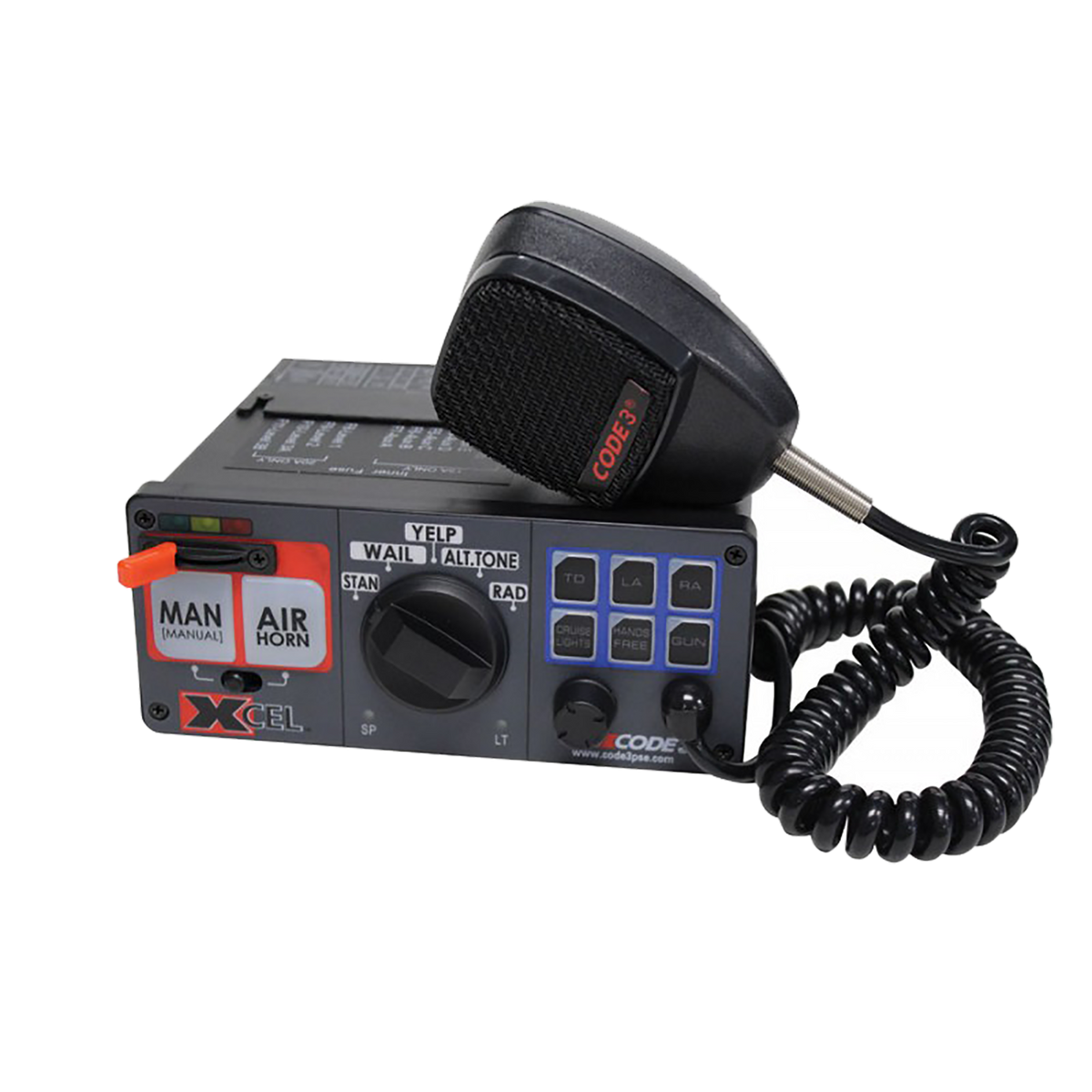

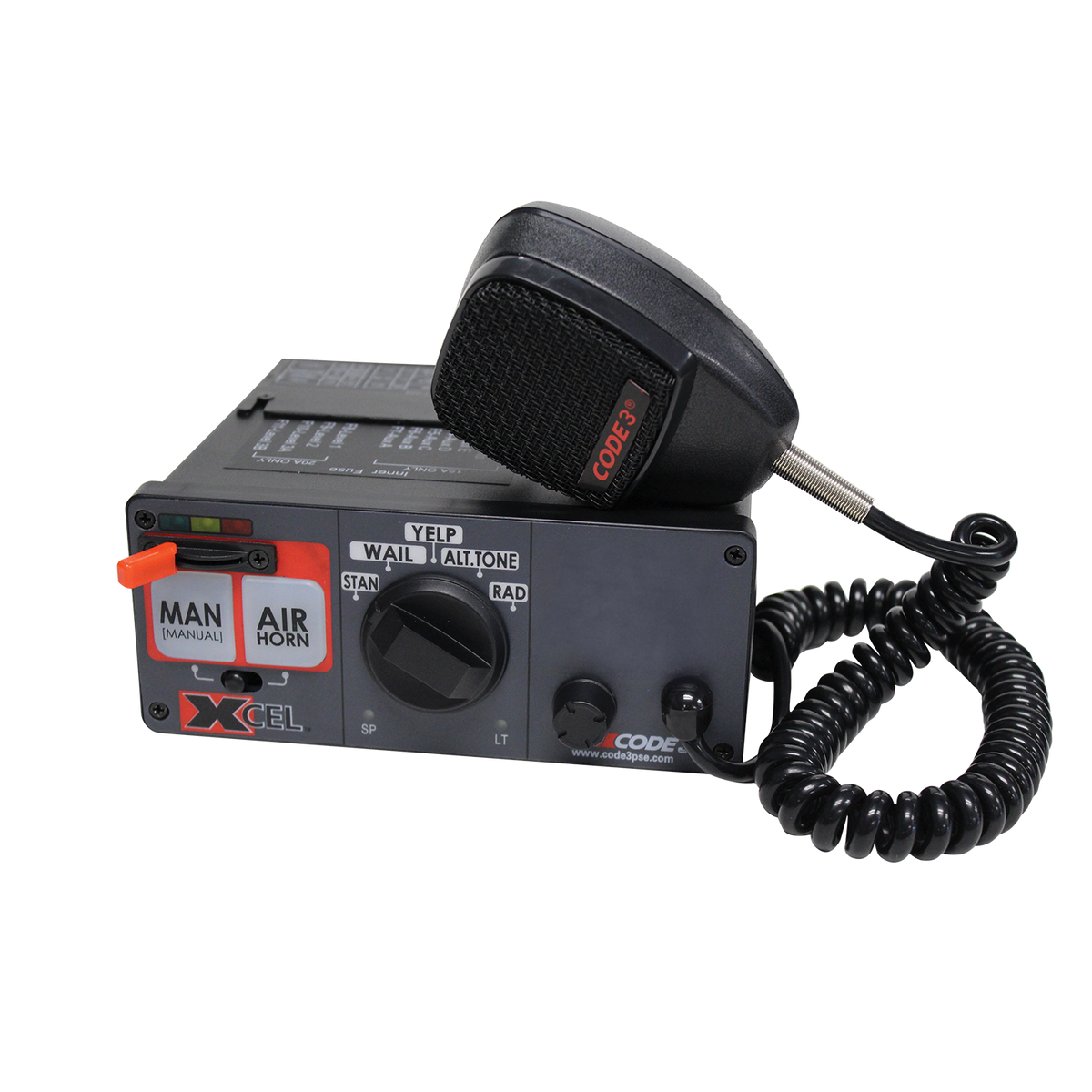

Code 3 XCEL Programmable Siren and Light Controller

The XCEL is a console-mount programmable siren that combines the siren amplifier with light control. Its three-level slide switch and programmable auxiliary buttons let the operator run the whole warning package while keeping their eyes on the road.

Features

• Programmable 3-level slide switch for independent, semi-progressive or progressive operation
• Six programmable auxiliary buttons (legend inserts included) plus 12 configurable DIP switches
• Five-position rotary: Standby, Wail, Yelp, Alt Tone and Radio
• Auxiliary buttons can latch to a slide-switch level
• California Title 13 compliance can be set with a single switch
• Works with the Banshee siren amplifier

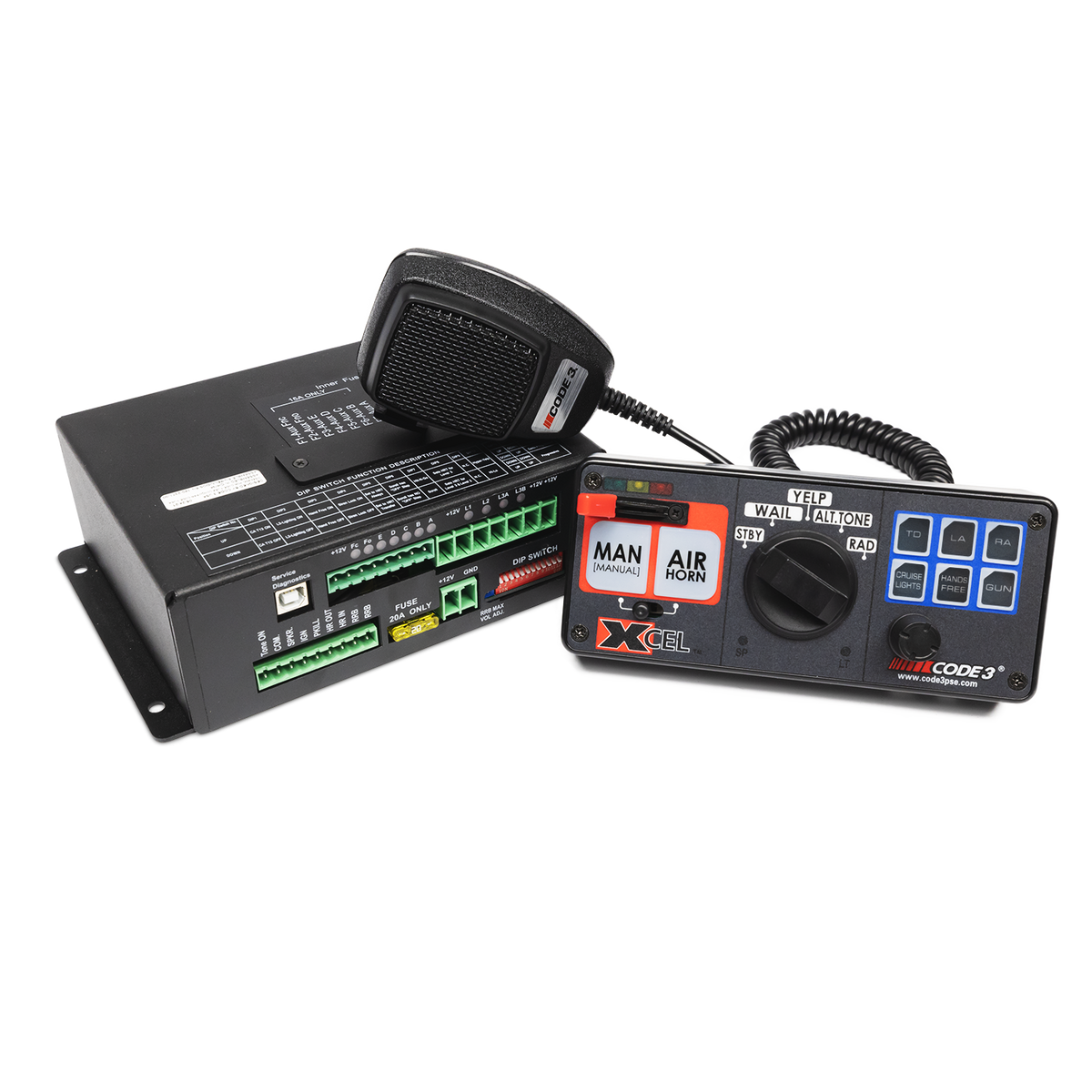

• Offered as a siren with permanent mic, siren with lighting control, or remote control head with plug-in mic

Specifications

• Power: 100 W or 200 W
• Voltage: 12V
• Current: 15A per level
• Dimensions: 2.8" H x 6.6" L x 6.3" D
• Models: 3492S, 3492L6S, 3492R
• Certifications: SAE J1849, California Title 13, NFPA, ECE R10, KKK-A 1822F
