Code 3 XTP3 Series LED Surface-Mount Warning Light
Code 3 XTP3 Series LED Surface-Mount Warning Light
Regular price
$59.11 USD
Regular price
$84.45 USD
Sale price
$59.11 USD
SKU:XTP3A-SB
Quantity
Couldn't load pickup availability

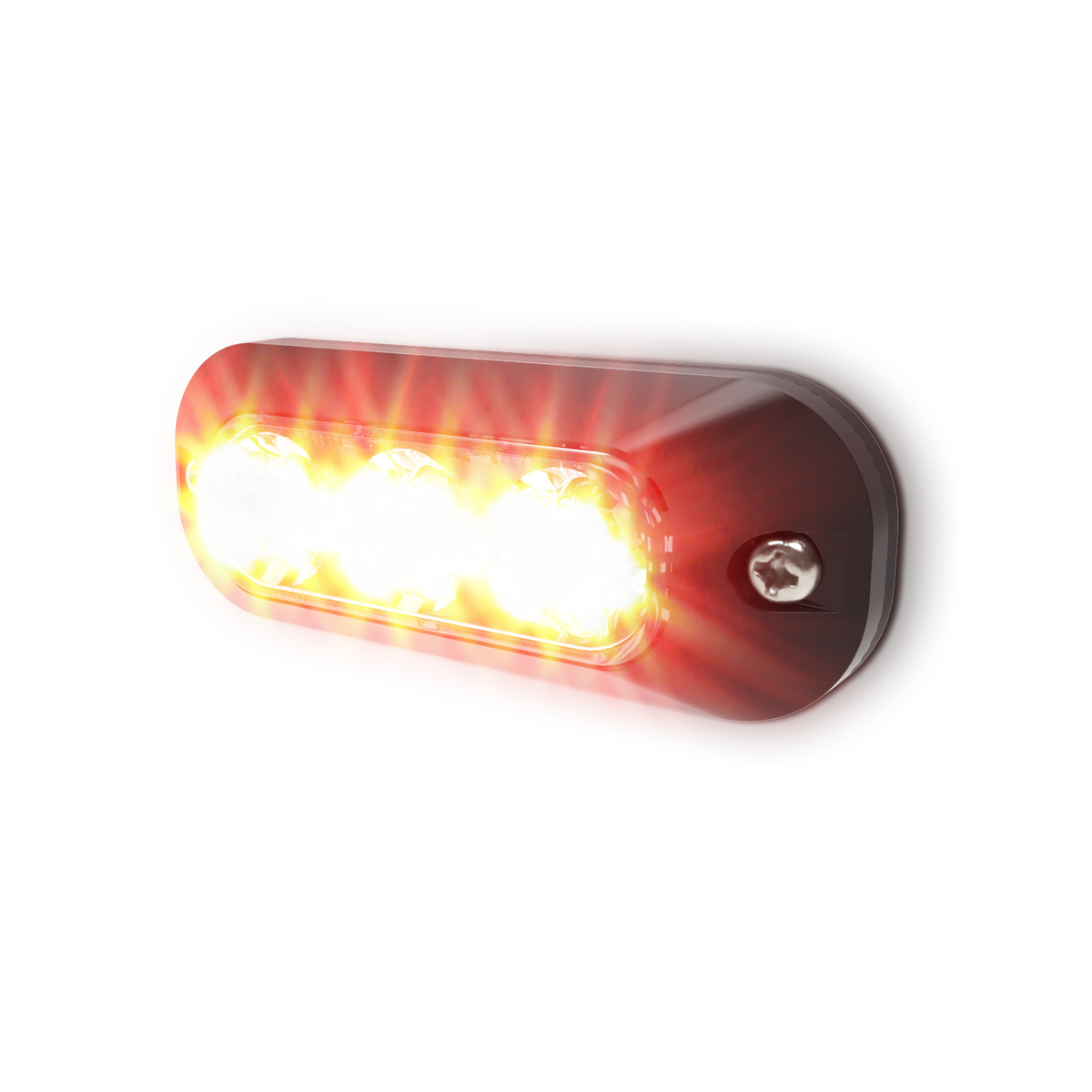

The XTP3 is the smallest of Code 3's XTP surface-mount lights. It packs a bright, controllable single-color warning signal into a slim, weatherproof body that can be mounted almost anywhere on the vehicle.
Features
- Adjustable flash output with steady-burn and dimming capability
- Phase 1 and phase 2 sync with multiple flash patterns
- Ultrasonic welding for better sealing
- Corrosion-resistant polycarbonate housing with built-in vent against moisture
- Steady-burn (-SB) models
- Matrix compatible: can be controlled and synchronized through a Code 3 Z3S siren or Switch Node
- Syncs with other Code 3 warning lights in the same sync group when set to matching flash patterns
Specifications
- Voltage: 12-24V
- Current: 0.4A
- Flash patterns: 21
- Colors: Amber, Blue, Green, Red, White
- Dimensions: 1.4" H x 3.7" L x 0.6" D
- Mounting hole spacing: 3.05"
- Certifications: SAE J595 Class 1, NFPA, ECE R65, ECE R10, IP67, IP69K, RoHS
