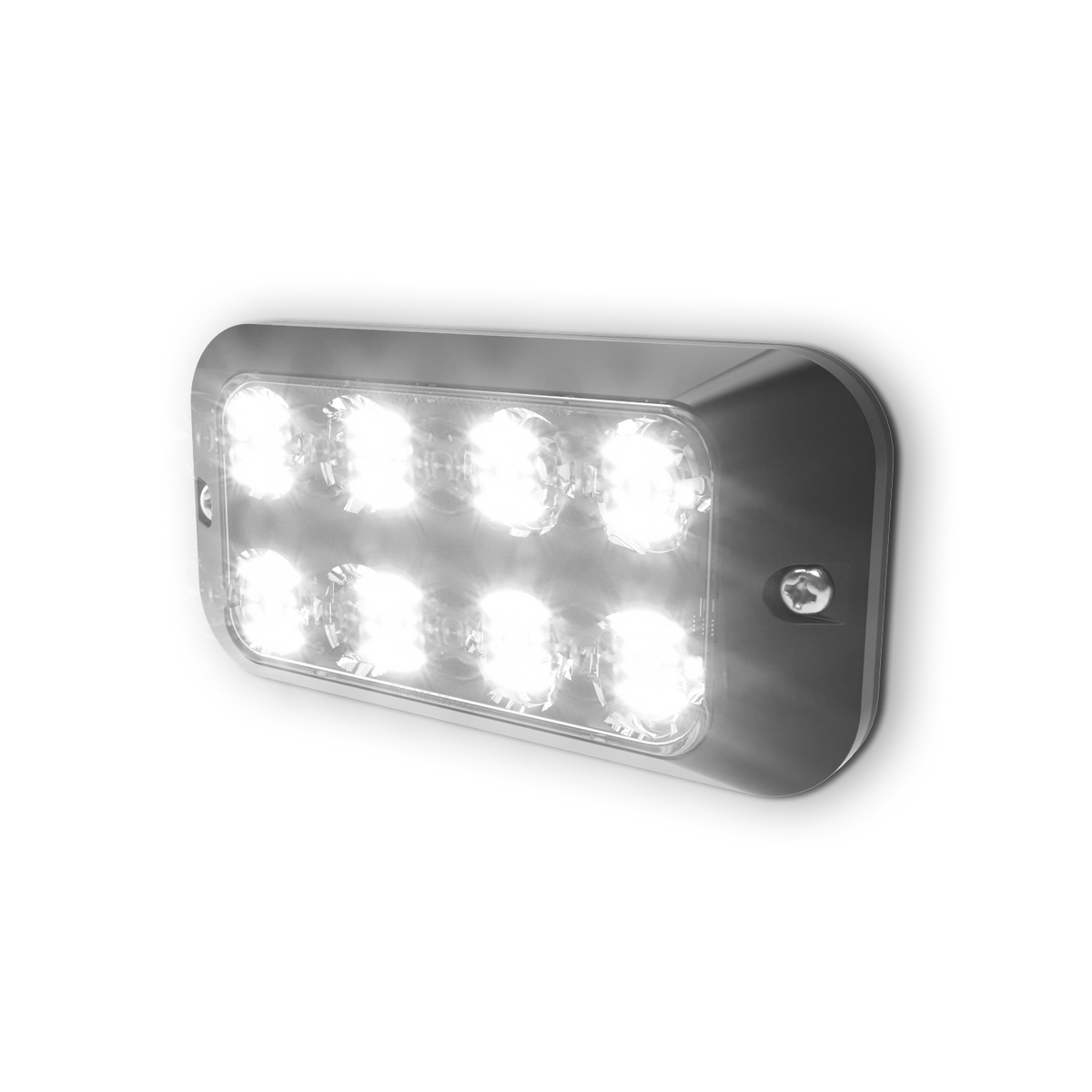

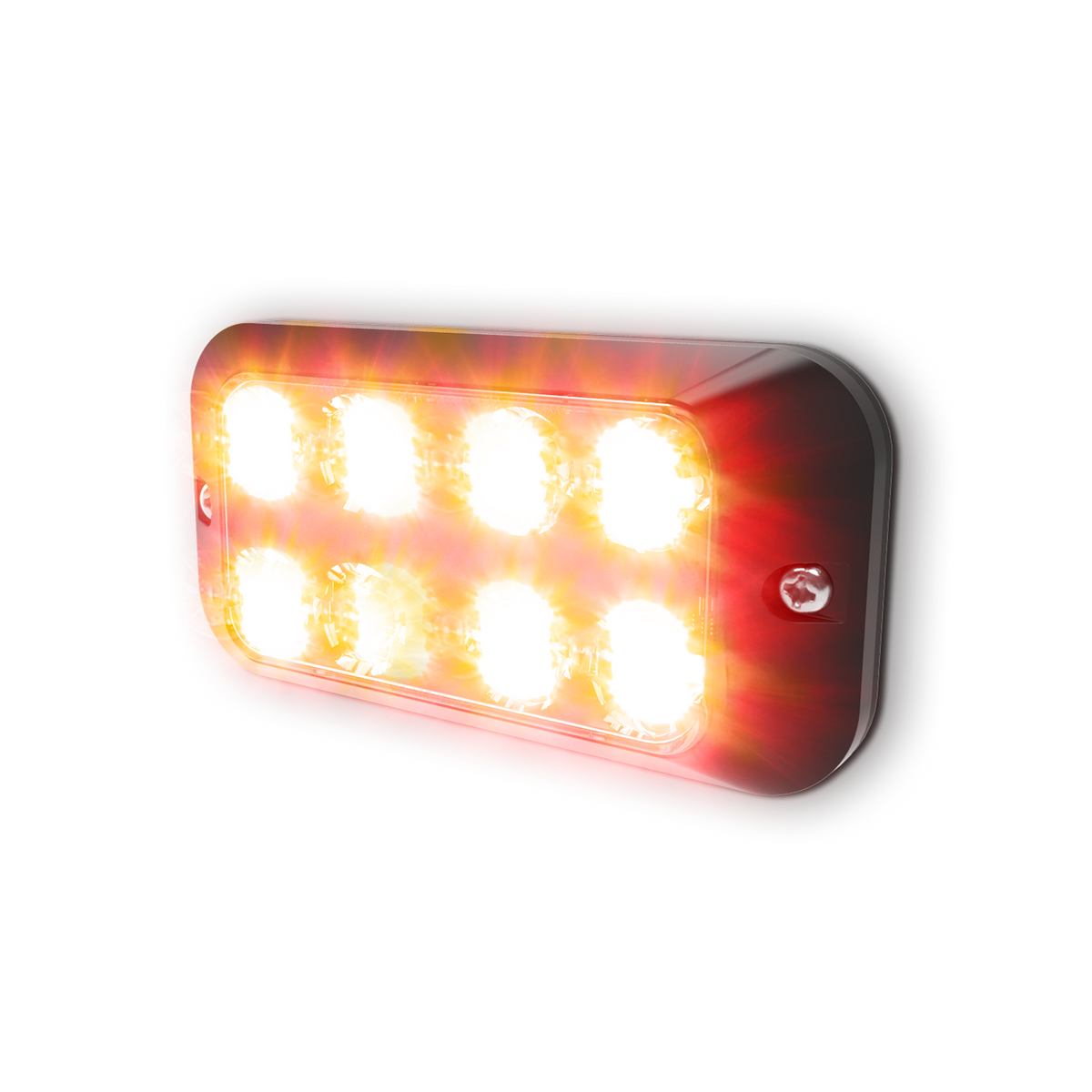

Code 3 XTP4DS Series Dual-Stack LED Surface-Mount Warning Light

Code 3 XTP4DS Series Dual-Stack LED Surface-Mount Warning Light

Regular price $111.34 USD
Regular price $159.05 USD Sale price $111.34 USD
Sale Sold out

SKU:XTP4DSAA-SB

Color: Amber/Amber
Quantity

The XTP4DS stacks two XTP4 heads into one housing for more output in the same width. It packs a bright, controllable warning signal into a slim, weatherproof body that can be mounted almost anywhere on the vehicle.

Features

  • Adjustable flash output with steady-burn and dimming capability
  • Phase 1 and phase 2 sync with multiple flash patterns
  • Ultrasonic welding for better sealing
  • Corrosion-resistant polycarbonate housing with built-in vent against moisture
  • Steady-burn (-SB) models
  • Matrix compatible: can be controlled and synchronized through a Code 3 Z3S siren or Switch Node
  • Syncs with other Code 3 warning lights in the same sync group when set to matching flash patterns

Specifications

  • Voltage: 12-24V
  • Current: 1.2A
  • Flash patterns: 62 (single-color), 70 (dual-color)
  • Colors: Amber, Blue, Red; dual-color Blue/Amber, Blue/White, Red/Amber, Red/Blue, Red/White
  • Dimensions: 2.4" H x 4.7" L x 0.6" D
  • Mounting hole spacing: 4.12"
  • Certifications: SAE J595 Class 1, NFPA, ECE R65, ECE R10, IP67, IP69K, RoHS
